ECN000-04P2-05P1-23S-01EG is CENO customized slip ring with circuits electric power and Ethernet signal which equipped on the machine working in low temperature environment. Low temperature slip ring is one type of function slip rings at CENO. In order to achieve the corresponding level of low temperature resistance, these slip rings are much stricter than ordinary slip rings in the material selection of key components such as bearings, brush filaments or shells.
Specification
| ECN000-04P2-05P1-23S-01EG | Specification |
|---|---|
Current & Circuits | 3 * 5A; 4 * 10A; 2 * 2A; 3 * RS422; 8 * 2A; 1 * 1000M Ethernet Signal |
Rating Voltage | 0 ~ 220 VAC/VDC |
Dielectric strength | ≥500VAC@50Hz; ≥300VAC@50Hz |
Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC |
Contact resistance wave | ≤ 30mΩ |
Working temperature | -55°C~+70°C; -20°C~+55°C |
Working humidity | 60 %RH |
IP protection grade | IP51 |
Operating speed | 0~300rpm |
Outer diameter | Ø62mm |
Contact material | Precious Metal |
Housing material | Aluminium Alloy |
Installation | Flange installation |
Lead wire length | As customized |

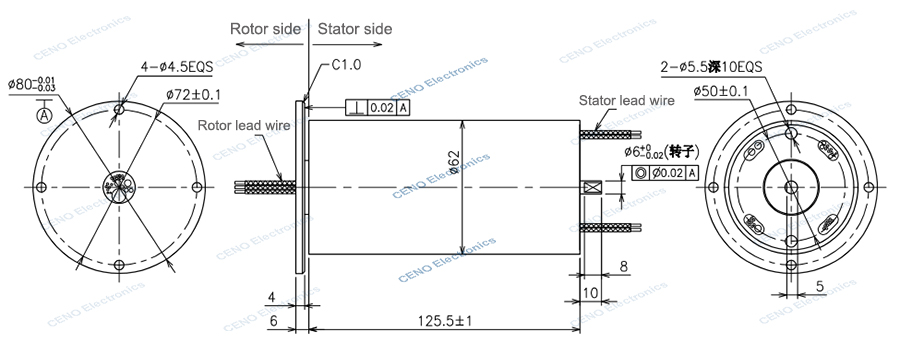

Outline drawing
