ECN000-03P4-06P-27S-04EM Low-temperature Slip Ring

ECN000-03P4-06P-27S-04EM is CENO low temperature slip ring combine circuits electric power, RS232 and Ethernet signal for equipment working in temperature from -40°C~+60°C. Low-temperature slip rings are not simply variations of power slip rings, but rather highly reliable products crafted using special materials, specialized lubricants, precision structures, and unique processes to meet the stringent requirements of extreme environments

Product Details

Specification

ECN000-03P4-06P-27S-04EM	Specification
Current & Circuits	3 30A; 2 10A; 45A; 14 Signal; 1RS232; 2RS422; 4*100M Ethernet
Rating Voltage	0 ~ 220 VAC/VDC
Dielectric strength	≥1000VAC@50Hz; ≥500VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@200VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-40°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~300rpm

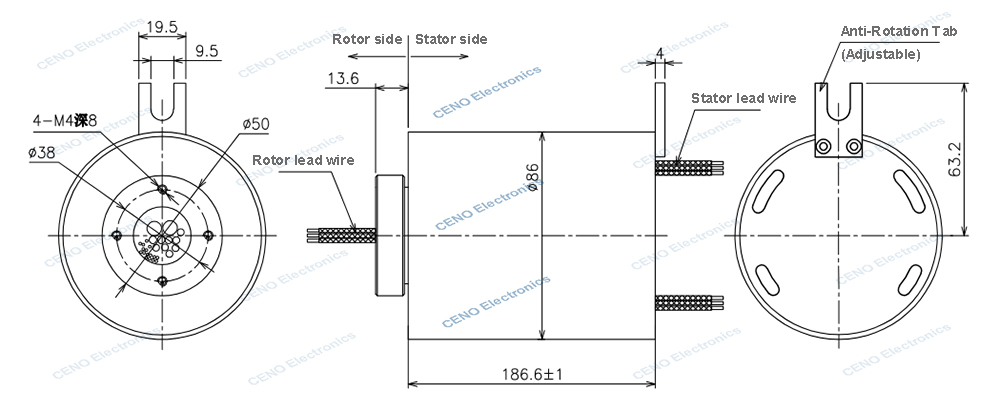

Outer diameter	Ø86mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Service life	5 million rotation
Lead wire length	As customized
