ECN012-03P2-16S-01EG is CENO Low Temperature Slip Ring combined circuits electric power with RS422 and Ethernet signal for high altitude airborne equipment such as aviation instruments, aircraft guidance systems, fuel systems communication systems and voice equipment etc. In order to achieve the corresponding level of high and low temperature resistance, these conductive slip rings are much stricter than ordinary slip rings in the material selection of key components such as shells, bearing and brush filaments. For more information please contact us.
Specification
| ECN012-03P2-16S-01EG | Specification |
|---|---|
Current & Circuits | 3 * 10A; 4 * RS422 Signal; 1 * Ethernet |
Rating Voltage | 0 ~ 240VAC/VDC |
Dielectric strength | ≥1500VAC@50Hz;≥300VAC@50Hz |
Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC |
Contact resistance wave | ≤ 30mΩ |
Working temperature | -40°C~+65°C |
Working humidity | 60 %RH |
IP protection grade | IP51 |
Operating speed | 0~250rpm |
Inner diameter | Ø12.7mm |
Outer diameter | Ø56mm |
Contact material | Precious metal / Gold to gold |
Housing material | Aluminium Alloy |
Lead wire length | As customized |

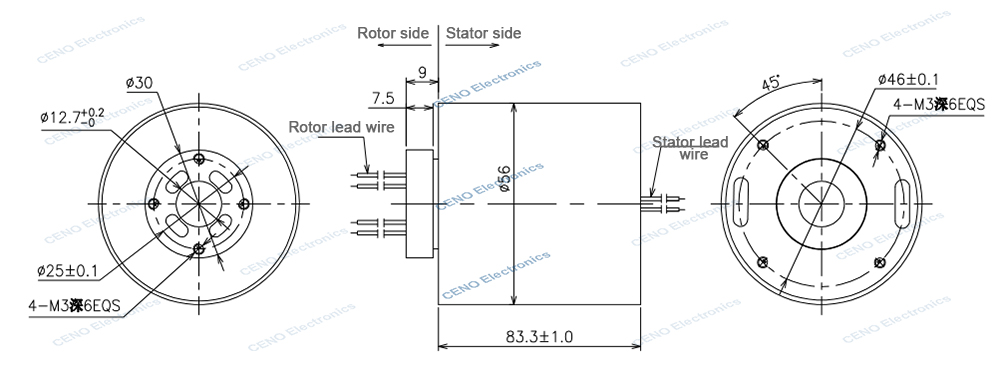

Outline drawing
