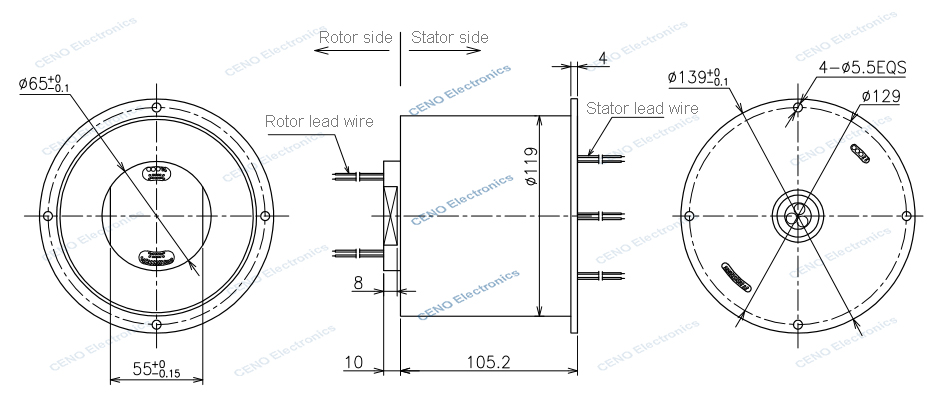

ECN000-07P-26S-03EG Low Temperature Ethernet Slip Ring

ECN000-07P-26S-03EG is CENO low temperature slip ring combine circuits electric power and gigabit Ethernet. That's "intelligent bridges" in modern mechatronic equipment, enabling reliable networked communication between rotating and stationary parts. Combining mature industrial bus technology with precise rotary connection technology, they are indispensable core components for high-end equipment to achieve automation, intelligence, and continuous rotational operation.

Product Details

Specification

ECN000-07P-26S-03EG	Specification
Current & Circuits	3 * 16A; 4 * 5A; 26 * Signal; 3 * 1000M Ethernet
Rating Voltage	0 ~ 220 VAC/VDC
Dielectric strength	≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@100VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-40°C~+55°C; -50°C~+70°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~100rpm
Outer diameter	Ø119mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire size & length	As customized
Installation	Flange installation
