QCN0308-80 is CENO through hole pneumatic hydraulic rotary union with 3 channels for water. CENO multi-port rotary union can simultaneous transmission of air, gas and vacuum and channels are available up to 24 for different requirement, such as they are ideal for many automation and robotic application. The light and compact rotary joints feature aluminum construction and independent flow passages that can transfer different types of media simultaneously. For more information please contact us.
Specification
QCN0308-80 | Specification |
|---|---|
The road | 3 channels * water |
Pressure | 0 ~ 20 Bar |
Working temperature | -20°C~+60°C |
Operating speed | 0~3 rpm |
Housing material | Stainless steel + Aluminum alloy |
Rotation torque | 100N*m |
Inner diameter | Ø 80mm |
Outer diameter | Ø225mm |

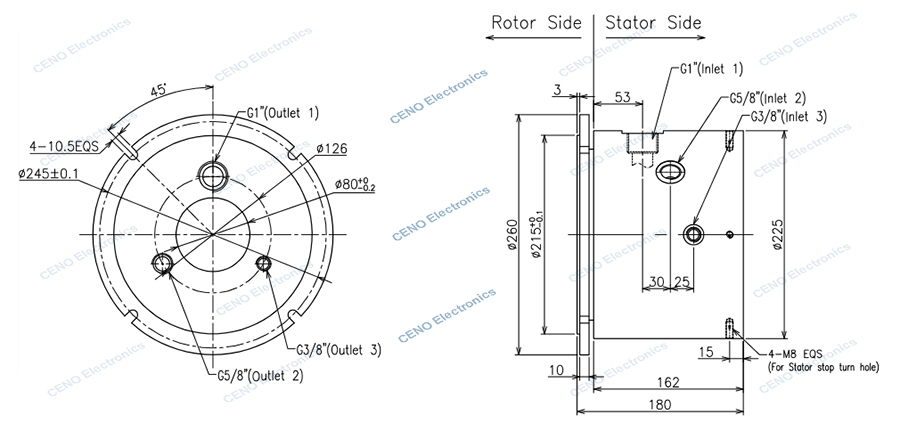

Outline drawing
