ECN000-04P2-08S is CENO Ethernet signal slip ring with circuits electric power and signal for industry system. CENO’s Ethernet signal slip ring solutions have been developed to provide reliable product to allow transfer of the Ethernet protocol through a rotating interface. A wide range of product solutions are offered with combinations of data and power in multiple mechanical configurations to meet your application needs. For more information about how CENO slip ring can fit your equipment, please contact us.
Specification
| ECN000-04P2-08S | Specification |
|---|---|
Current & Circuits | 4 circuits * 10A; 4circuits * 2A; 4circuits *Signal |
Rating Voltage | 0 ~ 480 VAC/VDC |
Dielectric strength | ≥1000VAC@50Hz; ≥300VAC@50Hz |
Isolation resistance | ≥50MΩ@500VDC; ≥10MΩ@300VDC |
Contact resistance wave | ≤ 20mΩ |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP51 |
Operating speed | 0~60rpm |
Outer diameter | Ø86mm |
Contact material | Precious Metal |
Housing material | Aluminum Alloy |
Lead wire length | As customized |
Installation way | As customized |

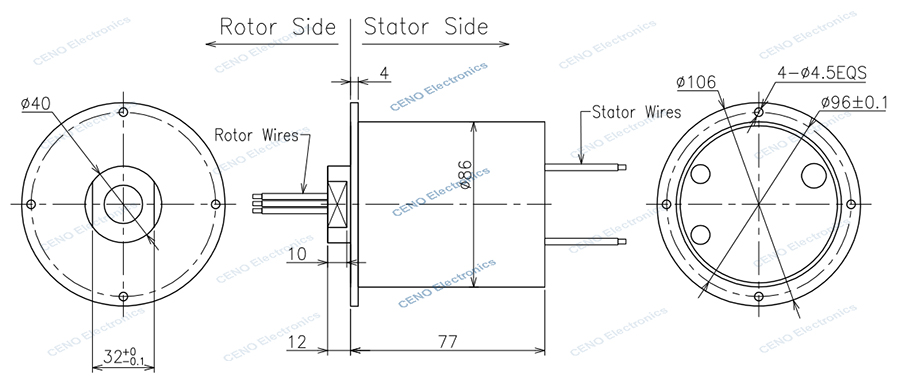

Outling drawing
