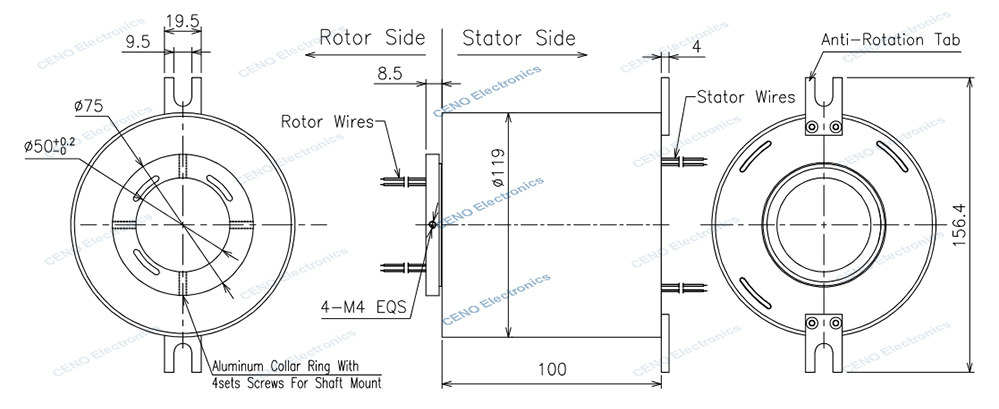

ECN050-06P3-02EG Ethernet Signal Slip Ring

ECN050-06P3-02EG is CENO Through hole Ethernet signal slip ring with 6 circuits electric power and 2 channels Ethernet signal for industry automatic machinery for customer request. There are three important parameters that must be considered when incorporating a slip ring in an Ethernet communication line: insertion loss, return loss and crosstalk. These parameters establish the signal to noise ratio of the transmission line and ultimately the Bit Error Rate, For more information please contact us.

Product Details

Specification

ECN050-06P3-02EG	Specification
Current & Circuits	6 circuits * 15A; 2 groups * 1000M Ethernet
Rating Voltage	0 ~ 220 VAC/VDC
Dielectric strength	≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~300rpm
Inner diameter	Ø50mm
Outer diameter	Ø119mm
Contact material	Gold to gold
Housing material	Aluminium Alloy
Lead wire length	Stator: 610mm; Rotor: 1530mm
