ECN038-0445 Electric Power Slip Ring

ECN038-0445 is CENO electric power slip ring with through hole 38mm & 4 circuits 45A current.Through hole slip ring is a rotating guide device with a central through-hole. It allows various pipelines (such as gas, water, optical fiber, and wire cable) or physical components (such as the shaft of other equipment) to pass through the center hole, thus enabling media transmission between rotating and stationary equipment without damaging the pipelines due to relative rotation. Please contact us.

Product Details

Specification

ECN038-0445	Specification
Current & Circuits	4 circuits * 45A
Rating Voltage	0 ~ 380 VAC/VDC
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance wave	≤ 70mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP54
Operating speed	0~300rpm
Contact material	Precious metal
Housing material	Aluminum alloy

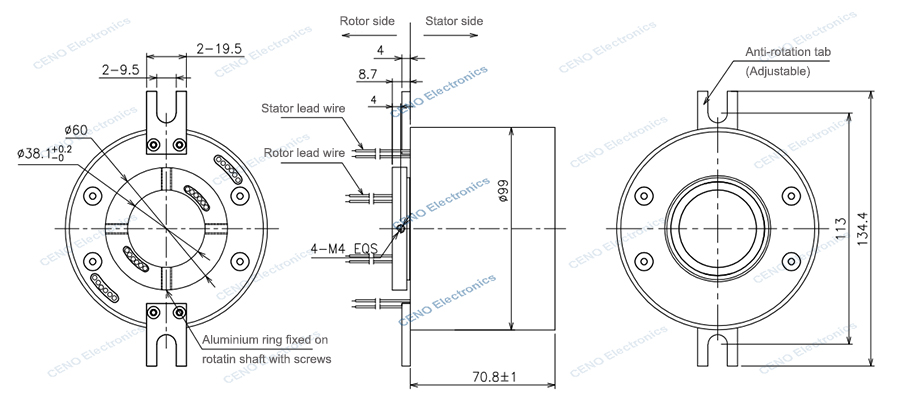

Inner / Outer diameter	38.1mm / 99mm
Lead wire size	As customized
Lead wire length	As customized
Rotation way	Fix up stator side with anti-rotation tab
