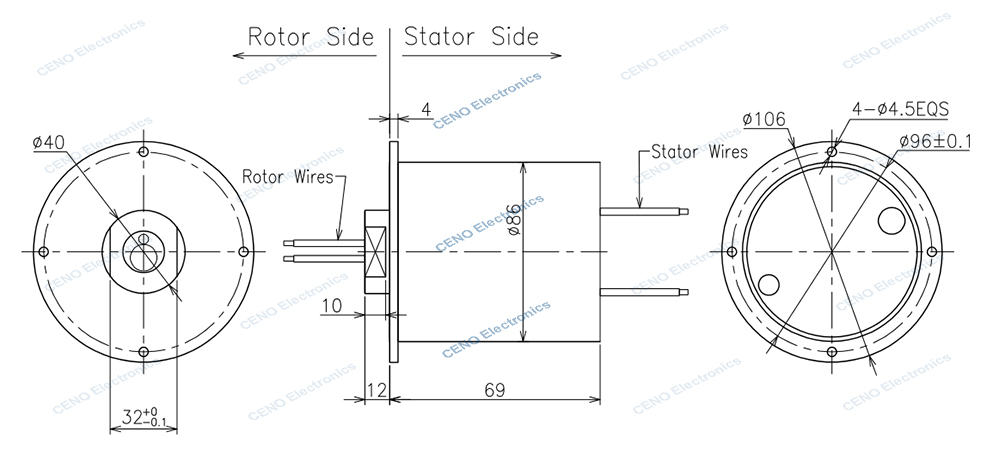

ECN000-05P3-04P1 Power Slip Ring

ECN000-05P3-04P1 is CENO power slip ring with 16A, 3A current and flange for easy installation. CENO power slip ring commonly used in high-end industrial electrical equipment or precision electronic equipment with multiple functions, high performance, high precision, and multiple continuous rotational movements. Such as automatic processing equipment, amusement equipment and smart cameras etc. For special application please contact us.

Product Details

Specification

ECN000-05P3-04P1	Specification
Current & Circuits	5 circuits * 16A; 4 circuits * 3A
Rating Voltage	0 ~ 400 VAC/VDC
Dielectric strength	≥1500VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance wave	≤ 20mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~2rpm
Outer diameter	Ø86mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Installation way	As customized
Lead wire length	As customized
