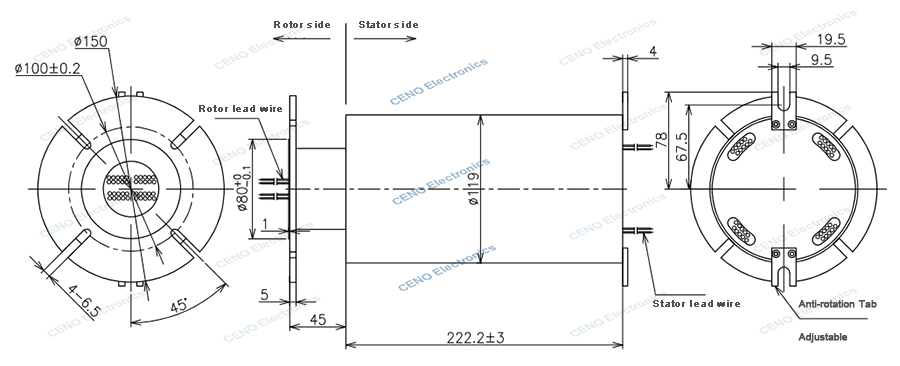

ECN000-04200 High current slip ring

ECN000-04200 is CENO high current slip ring with 4 circuits for 200A for a automatic system. A slip ring passes electrical signal, power or data across a rotating interface using sliding electrical contacts. These contacts are typically a rotating ring and a stationary brush, or wiper, that slides along the ring surface during rotation. Materials and design approaches for these contacts have been optimized to minimize wear and maximized electrical performance.

Product Details

Specification

ECN000-04200	Specification
Current & Circuits	4 circuits * 200A
Rating Voltage	0 ~ 380 VAC/VDC
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Electrical noise	Max 70mΩ (50rpm)
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP54
Operating speed	0~300rpm
Outer diameter	Ø119mm
Contact material	Precious Metal
Housing material	Aluminum alloy
Lead wire size	As customized
Lead wire length	As customized
Installation	Fixed flange by screws
