Industry Slip Ring with Electric Power & Ethernet Signal

ECN050-08P-02EG is CENO through hole industry slip ring with circuits electric power and Ethernet signal for industry system. CENO Ethernet signal slip ring solutions have been developed to provide reliable products to allow transfer of the Ethernet protocol through a rotating interface. CENO Power slip ring can be customized to integrate kinds of Electric current, circuits, signals,data or fiber optic rotary joint or radio frequency rotary union for special application. For more information please contact us.

Product Details

Specification

ECN050-08P-02EG	Specification
Current & Circuits	2 circuits30A; 2 circuits30A; 4 circuits10A; 2 groups 1000M Ethernet signal
Rating Voltage	0 ~ 48 VAC/VDC
Dielectric strength	≥500VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave	≤ 20mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~30rpm

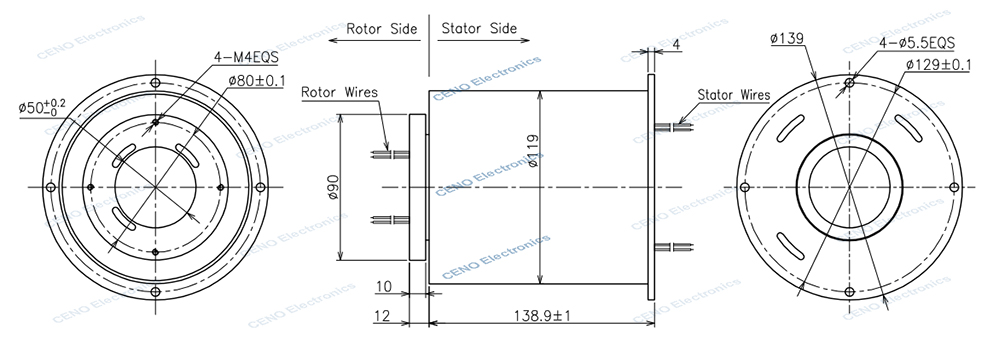

Inner diameter	Ø50mm
Outer diameter	Ø119mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire length	As customized
