PSCN042-02P4-02S-A Pancake Slip Ring

PSCN042-02P4-02S-A is CENO pancake slip ring with 20A current and CAN signal. The design principle of pancake slip rings is based on a simple planar sliding electrical contact mechanism. Convert traditional radial sliding friction into axial planar sliding friction, and use spring pressure and planar ring to achieve stable and reliable electrical connection. Often equipped in machines such as security and surveillance, Aerospace, test equipment or display and entertainment etc. For more information please contact us.

Product Details

Specification

PSCN042-02P4-02S-A

Specification

Current & Circuits

2 circuits * 20A; 2 circuits * Can signal

Rating Voltage

0 ~ 100 VAC/VDC

Dielectric strength

≥300VAC@50Hz

Isolation resistance

≥100MΩ@100VDC

Contact resistance wave

≤ 30mΩ

Working temperature

-20°C~+60°C

Working humidity

60 %RH

IP protection grade

IP00

Operating speed

0~80rpm

Inner diameter

Ø42mm

Contact material

Gold to gold

Housing material

FR4

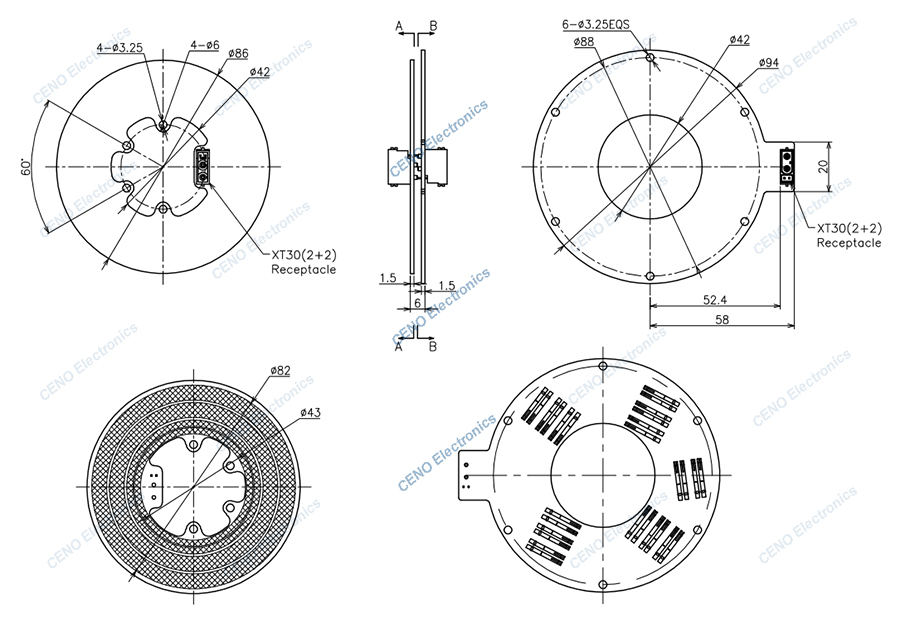

Outline drawing

PSCN042-02P4-02S-A drawing rev
