PSCN020-02P1-02S is CENO spare parts slip ring with 4 circuits electric power and CANBus signal, inner bore size is optional from 1mm to 600mm. PCBA slip ring is one kind of pancake slip ring, which is called ultra-thin flat slip ring, and including stator side and rotor side also. Stator side and rotor side connected by springs that one side is soldering on rotor side or stator side. PCBA slip ring is mainly used in the place Medical facility, textile robots, total station or Antenna etc.
Specification
| PSCN020-02P1-02S | Specification |
|---|---|
Current & Circuits | 2 circuits * 5A; 2 circuits * CanBus Signal |
Rating Voltage | 0 ~ 100 VAC/VDC |
Dielectric strength | ≥300VAC@50Hz |
Isolation resistance | ≥100MΩ@100VDC |
Contact resistance wave | ≤ 30mΩ |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP00 |
Operating speed | 0~80rpm |
Inner diameter | Ø20mm |
Contact material | Gold to Gold |
Housing material | FR4 |
Rotation way | Flange installation |

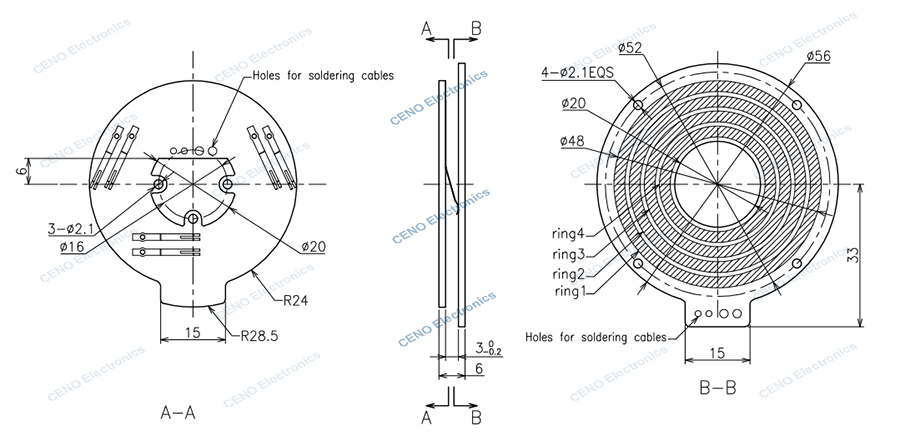

Outline drawing
