PSCN282-02P1 is CENO separate PCB slip ring, that is rotary conductive connector manufactured using printed circuits board technology. Its core principle is to achieve multi-layer circuit stacking through precision PCB manufacturing, and to achieve dynamic transmission through the sliding contact between elastic contact plates and conductive rings. Due to it’s core advantages of high density, long life and rapid customization, becoming the preferred solution for precision rotary transmission. For more information please contact us.
Specification
| PSCN282-02P1 | Specification |
|---|---|
Current & Circuits | 2 circuits * 1.16A |
Rating Voltage | 0 ~ 24 VAC/VDC |
Dielectric strength | ≥500VAC@50Hz |
Isolation resistance | ≥200MΩ@500VDC |
Contact resistance wave | ≤ 70mΩ |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP00 |
Operating speed | 0~2rpm |
Inner diameter | Ø282mm |
Outer diameter | Ø328mm |
Contact material | Precious Metal |
PCB | FR-4 |
| Lead wire size & length | As customized |

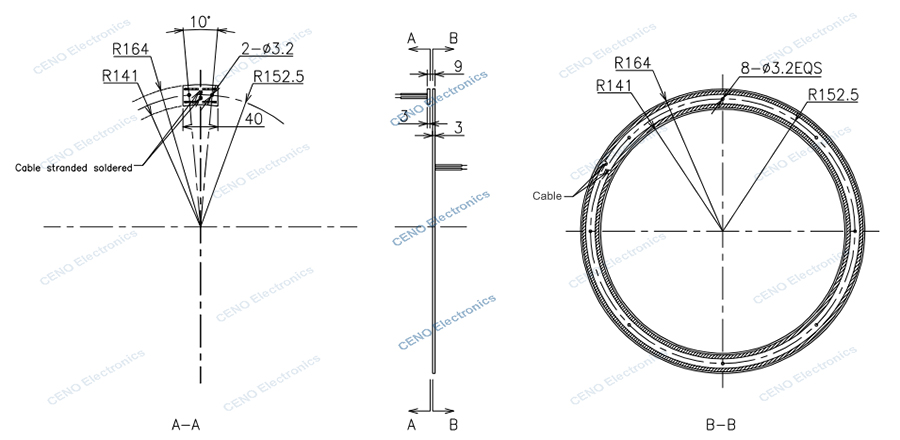

Outline drawing
