ECN000-08P2-04F is CENO integrate slip ring combine electric power and 2 channels fiber optic rotary joint. CENO integrate slip ring series efficiently integrate forjs, RF and pneumatic/hydraulic rotary union with electric power slip ring, enabling the synchronous and stable transmission of optical signals, electrical power and control signals during continuous 360° rotation.Support multi-channel and multi-specification customization to meet your various complex operating.
Specification
| ECN000-08P2-04F | Specification | |
|---|---|---|
Current & Circuits | 8 circuits * 10A | |
Rating Voltage | 0 ~ 1200 VAC/VDC | |
Dielectric strength | ≥1500VAC@50Hz | |
Isolation resistance | ≥500MΩ@500VDC | |
Contact resistance wave | ≤ 30mΩ | |
Working temperature | -30°C~+80°C | |
Working humidity | 60 %RH | |
IP protection grade | IP51 | |
Operating speed | 0~100rpm | |
Outer diameter | Ø86mm | |
Contact material | Precious Metal | |
Housing material | Aluminium Alloy | |
Installation | Flange installation | |
Fiber Optic Rotary Joint | ||
Fiber type | SM | MM |
channels | 2 | 2 |
Wave length | 1310/1550nm | 850/1300nm |
Insertion loss | ≤3.5dB | ≤3.5dB |
Return loss | ≤40dB | ≤40dB |
Cable length | Rotor:3000mm; Stator:1500mm | |
Connector type | FC/FC | |

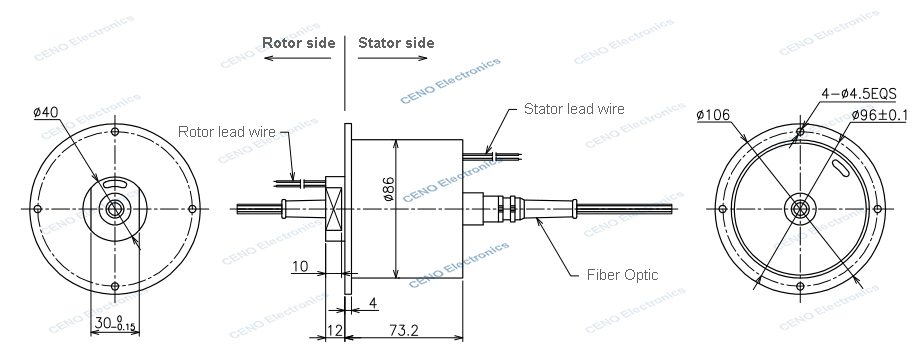

Outline drawing
