ECN000-02P1-03S-02R-IP65 Integrate RF Slip Ring

ECN000-02P1-03S-02R-IP65 is CENO Integrate RF Slip Ring combined circuits electric power signal and 2 channels radio frequency rotary joint suit for low temperature environment. CENO integrate slip rings are multi-functional rotary connection solution that highly integrate various transmission modules such as power slip ring, forjs, rf rotary joint and pneumatic/hydraulic channels, specially designed for the simultaneous rotary transmission in complex system. For more information please contact us.

Product Details

Specification

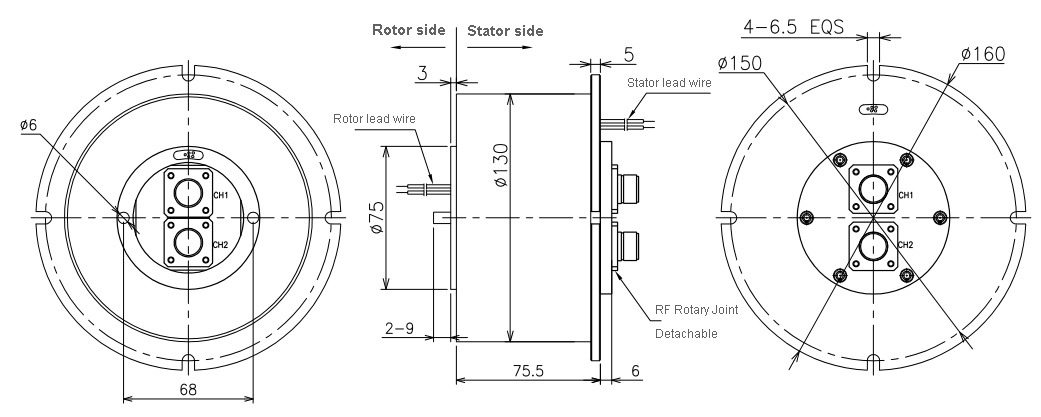

ECN000-02P1-03S-02R-IP65	Specification
Current & Circuits	2 * 3A; 3 *10 Signal
Rating Voltage	0 ~ 220 VAC/VDC
Dielectric strength	≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC;≥100MΩ@300VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-40°C~+60°C(W); -45°C~+70°C (S)
Working humidity	60 %RH
IP protection grade	IP65
Operating speed	0~30rpm
Outer diameter	Ø130mm
Materials	Precious Metal; Aluminium Alloy
Installation	Flange installation
RF ROTARY JOINT
Channels	Channel 1	Channel 2
Connector type	N-K(50Ω)	N-K(50Ω)
Frequency range	DC to 1GHz	DC to 1GHz
Average power (max)	60W	20W
WSR (max)	1.25	1.3
WSRC (max)	0.1	0.15
Insert loss (max)	0.3dB	0.4dB
Insertion loss rate (max)	0.1dB	0.1dB
Isolation	70dB	70dB
