ECN050-14S-01EM-IP65-B is CENO integrate slip ring combine circuits electric power, Ethernet signal with one channel Encoder suit for the equipment working in low temperature environment. Encoder is a device that complies and converts electric signal or data into signals that can be communicated, transmitted and stored. That can be divided into incremental type and absolute value type according to the working principle. For more information please contact us.
Specification
| ECN050-14S-01EM-IP65-B | Specification |
|---|---|
Current & Circuits | 3 groups * K type thermocouple; 1 group * Encoder signal; 1 group * 100M Ethernet |
Rating Voltage | 0 ~ 24 VAC/VDC |
Dielectric strength | ≥300VAC@50Hz |
Isolation resistance | ≥100MΩ@300VDC |
Contact resistance wave | ≤ 30mΩ |
Working temperature | -40°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP65 |
Operating speed | 0~300rpm |
Inner diameter | Ø50mm |
Outer diameter | Ø119mm |
Contact material | Precious Metal |
Housing material | Aluminium Alloy |
Lead wire length | As customized |

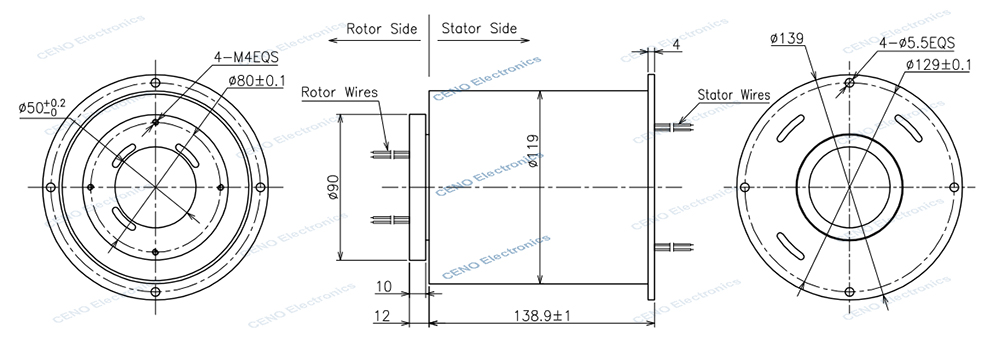

Outline drawing
