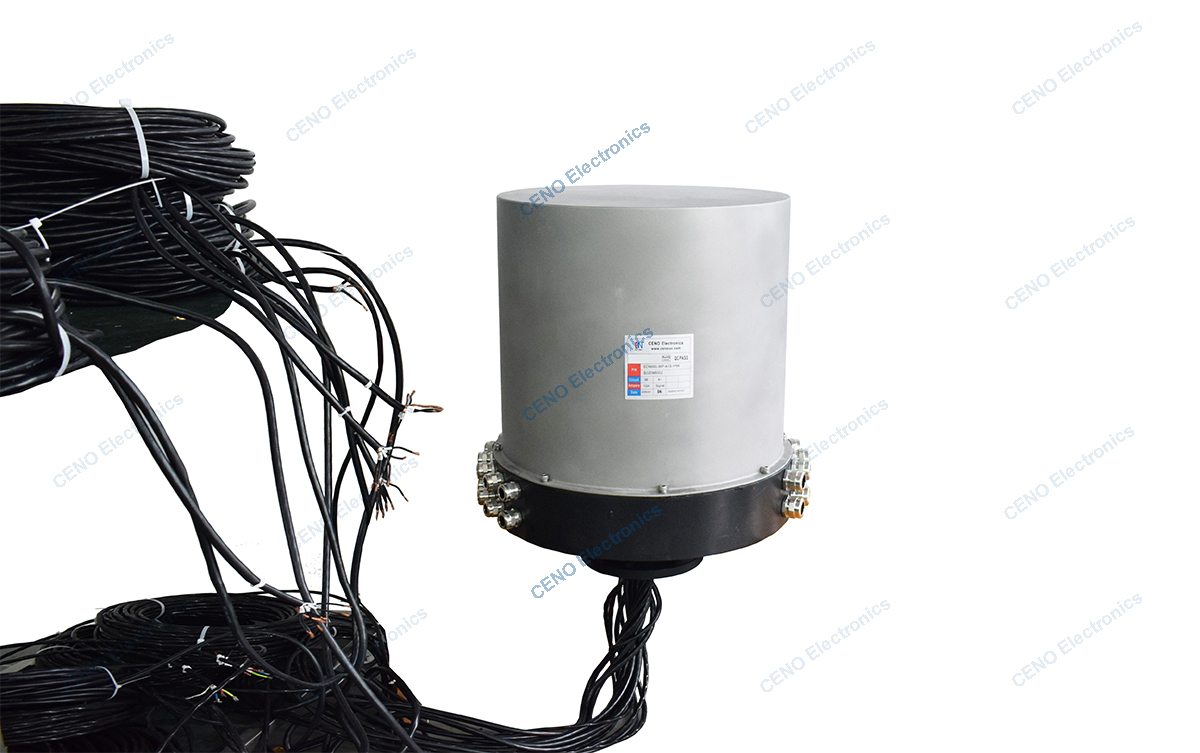

ECN000-08P-08S Water-proof slip ring

Waterproof slip ring is a kind of slip ring which is used in the special environment of moisture, corrosion and underwater. According to working environment, the waterproof slip ring could be divided into multiple protection grade, such as IP65, IP67, IP68 and so on. The protection grade design and material selection for the slip ring is associated with working environment liquid ingredients, such as sea water, fresh water and oil.


Product Details


ECN000-08P-08S

Specification

Current

8*15A ,8*signal

Voltage

380VAC/DC

Electrical noise

<10mΩ (with 50rmb running)

Dielectric strength

≥1000V@50Hz

Isolation resistance

≥500MΩ@100VDC

Operating speed

0-50 rpm

Contact material

Precious Metal

Operating temperature

-20~+80℃

IP protection grade

IP66

Connector type

RJ45 Male/Female

Cable size

FLRY-B 2.0m

Multi-core twisted shielding cable




Outline drawing
