ECN015-03P-02S

This is thermocouple signal slip ring, through hole size is 15 mm, it transmits 5A current and two group K-type thermocouple signal, working speed 300rpm, inside contact material precious metals, housing material is aluminum alloy, It has features with simple assembly, easy replacement. CENO thermalcouple slip ring is usually to be applied on chip mounter, automation machinery and agitator in chemical engineering. It has features with simple assembly, easy replacement, wide temperature measurement range from -270℃ to +2800℃, high measurement precision and thermalcouple type is optional. CENO can provide slip ring with inner bore size from 3mm to 980mm, any other special requirements just contact with us.

Product Details


ECN015-03P-02S

Specification

Circuits & Current

3*5A,2*K-type thermocouple

Voltage

220 VAC

Electrical noise

Max 70mΩ (50rpm)

Dielectric strength

≥500V@50Hz (power)

≥300V@50Hz (signal)

Insulation resistance

≥500MΩ@500VDC (power)

≥100MΩ@300VDC (signal)

Operating speed

0-300 rpm

Contact material

Precious metal

Housing material

Aluminium alloy black housing

IP protection grade

IP54

Working temperature

-20°C ~ +60°C

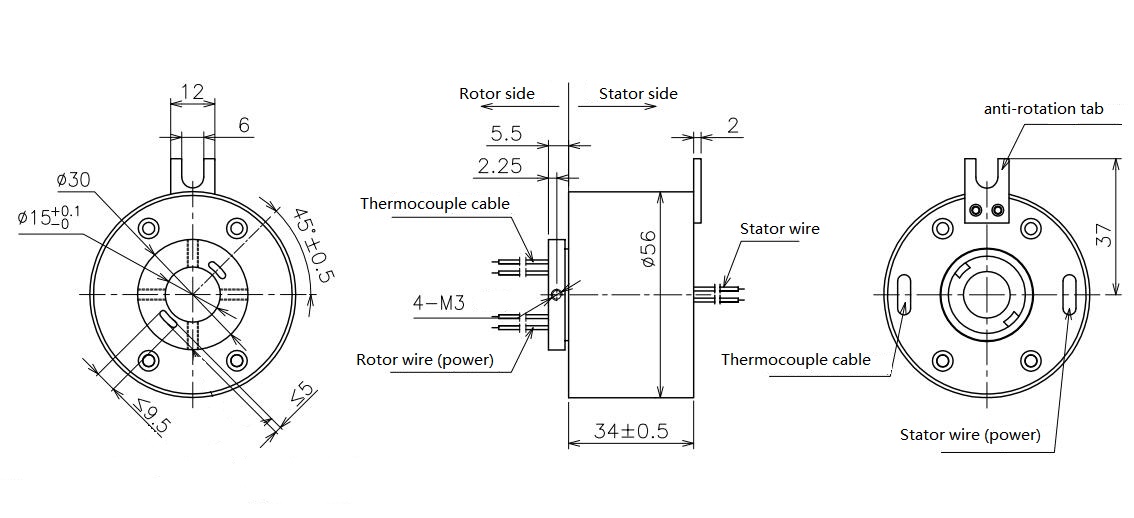

Outline drawing
