ECN050-04P-01S

This is thermocouple signal slip ring, through hole size is 50 mm, it transmits 20A current and one group K-type thermocouple signal, working speed 300rpm, inside contact material precious metals, housing material is aluminum alloy, It has features with simple assembly, easy replacement, wide temperature measurement range from -270℃ to +2800℃, high measurement precision and thermalcouple type is optional.

Product Details

ECN050-04P-01S	Specification
Current	420A,1K-type thermocouple signal
Voltage	380VAC
Electrical noise	≤70mΩ(50rpm)
Dielectric strength	≥1000V@50Hz (signal)
Insulation resistance	≥1000MΩ@500VDC(signal)
Operating speed	0-300 rpm
Contact material	precious metals
Operating temperature	-20~+60℃
Through bore size	50mm
IP protection grade	IP54

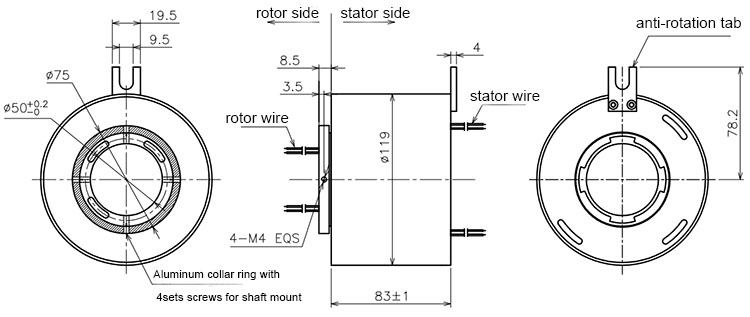

Outline drawing
