SCN-C-15-04S Separate Slip Ring

SCN-C-15-04S is CENO separate slip ring with 4 circuits signal. Separate slip rings include two types of split conductive slip rings and two-half slip rings. The characteristics are that the combination of separated rotors and contact brushes can solve the problem of installation size restrictions. 2-36 channels are optional. 9.5mm to 100mm through hole or solid is optional. Especially for small precision instruments and other equipment, non-standard customization is possible.

Product Details

Specification

SCN-C-15-04S	Specification
Current & Circuits	4 circuits * Signal
Rating Voltage	0 ~ 24 VAC/VDC
Dielectric strength	≥500VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Working temperature	-20°C~+80°C
Working humidity	60 %RH
IP protection grade	IP00
Operating speed	0~800rpm
Inner diameter	Ø15mm
Outer diameter	Ø20mm
Lead wire size	As customized
Lead wire length	As customized

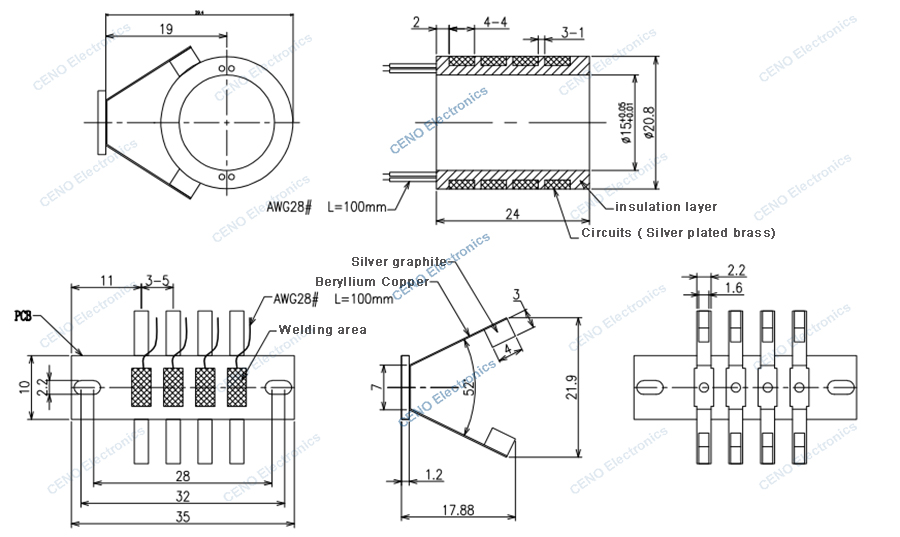

Outline drawing
