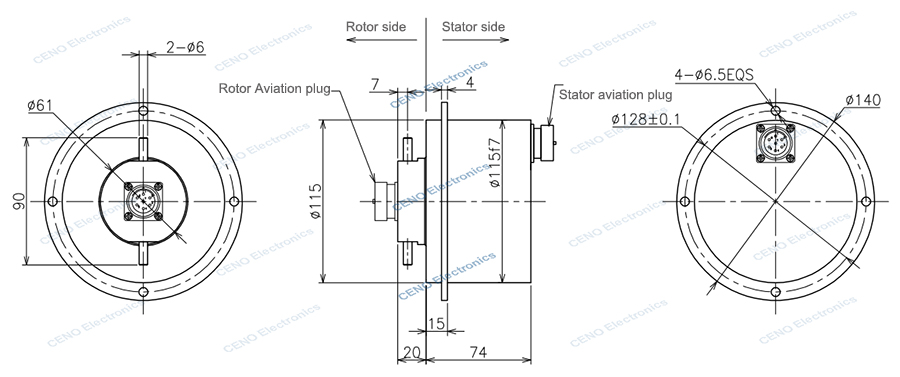

ECN000-07P1-IP66 Water-proof Slip Ring

ECN000-07P1-IP66 is CENO water-proof slip ring with IP66 and electric power aircraft plug for the equipment working in high humidity environment. Protection grade can be choose as different requirement such as IP65, IP66, IP67 and IP68. CENO water proof slip rings are mainly used in ships, port and navigation equipment. The design and material selection of the protection level are related to the liquid composition, such as seawater, fresh water, oil are closely related. More information please contact us

Product Details

Specification

ECN000-07P1-IP66	Specification
Current & Circuits	7 circuits * 5A
Rating Voltage	0 ~ 380 VAC/VDC
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	90 %RH
IP protection grade	IP66
Operating speed	0~100rpm
Outer diameter	Ø115mm
Contact material	Precious Metal
Housing material	Aluminium Alloy + Stainless steel
Lead wire size & length	Aircraft plug
Installation	Flange installation
