ECN050-10P2-14S-A-IP65 Water-proof slip ring

The waterproof slip ring is specially developed for underwater and various harsh environments, it can work under water100m and load -bearing, high temperature resistance, anti-corrosion.according to different fields, the protection grade IP65-IP68 is optional.

Product Details

ECN050-10P2-14S-A-IP65	Specification
Current	1010A ,14signal
Voltage	380VAC
Electrical noise	70mΩ max @ 50rpm
Dielectric strength	≥1000VAC@50Hz（power） ≥1000VAC@50Hz（signal）
Isolation resistance	500MΩ@500VDC（power） 300MΩ@100VDC（signal）
Operating speed	0~100rpm
Contact material	Precious metal
Operating temperature	-20~+60℃
Through bore size	Ø50mm
Protection grade	IP65

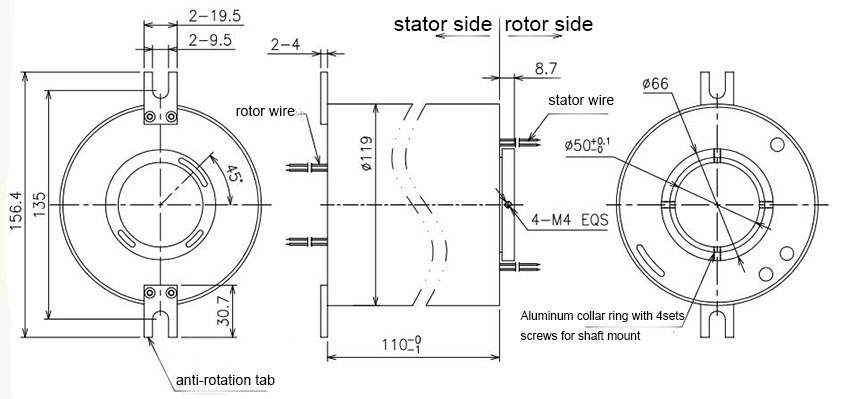

Outline drawing
