ACN-16P1-54S-03HD HD-SDI Signal Slip Ring

ACN-16P1-54S-03HD is CENO HD-SDI signal slip ring combine circuits electric power, signal and 3 groups HD-SDI signal for security monitoring. Goal of HD-SDI signal slip ring is high quality, stable, long-distance video signal transmission in professional broadcast and film and television production environments. It is designed to connect professional equipment such as cameras, switchers, recorders, matrices, monitors, etc. Requiring extremely high reliability and anti-interference capability.

Product Details

Specification

ACN-16P1-54S-03HD	Specification
Current & Circuits	16 * 5A; 54 * 0.5A; 3 Group * HD-SDI
Rating Voltage	0 ~ 24 VAC/VDC
Dielectric strength	≥100VAC@50Hz
Isolation resistance	≥10MΩ@100VDC
Contact resistance wave	≤ 5mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP00
Operating speed	0~250rpm

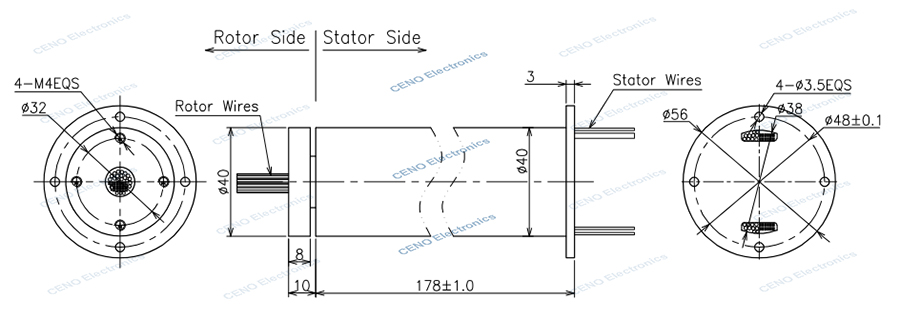

Outer diameter	Ø40mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire length & size	As customized
