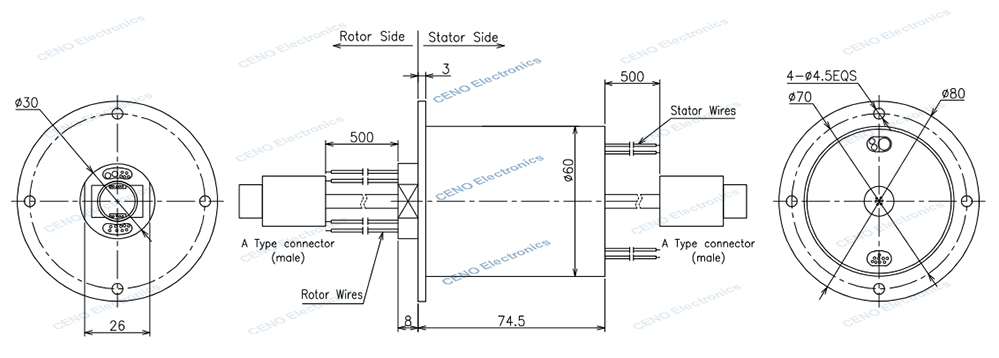

ECN000-02P3-01EG-01U2-01HD HDMI Signal Slip Ring

ECN000-02P3-01EG-01U2-01HD is CENO HDMI Signal Slip Ring combine Power, Ethernet and USB for Radar communication. HD slip rings include SDI HD and HDMI, which can transmit electrical signals, HD video signals, and high-speed digital signals at the same time, meeting EMC electromagnetic compatibility requirements. CENO high-definition slip rings use the leading domestic military technology and have the advantages of stable transmission, ultra-low signal attenuation loss and transmission fluctuation. For more information please contact us.

Product Details

Specification

ECN000-02P3-01EG-01U2-01HD	Specification
Current & Circuits	2 12.5A; 1 1000M Ethernet; 1 * USB2.0 Signal; 1 * HDMI
Rating Voltage	0 ~ 24VAC/VDC
Dielectric strength	≥300VAC@50Hz
Isolation resistance	≥100MΩ@300VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP52
Operating speed	0~300rpm
Outer diameter	Ø60mm
Contact material	Precious Metal / Gold to gold
Housing material	Aluminium Alloy
Lead wire size & length	As customized
