ECN000-20P1-21S-01EG Low Temperature Slip Ring

ECN000-20P1-21S-01EG is CENO low temperature capsule slip ring with electric power and 1000M Ethernet signal for the equipment working in low temperature environment. CENO capsule slip ring are often offered in a compact size with flange like miniature slip ring, it works stably and transmit electric power and Ethernet signals from one side to other side smoothly. Often equipped in instrument, medical equipment, automatic machine and Robot arm. For more information please contact us.

Product Details

Specification

ECN000-20P1-21S-01EG	Specification
Current & Circuits	20 circuits * 4A; 21* 2A; 1*1000M Ethernet
Rating Voltage	0 ~ 28 VAC/VDC
Dielectric strength	≥300VAC@50Hz
Isolation resistance	≥50MΩ@300VDC
Contact resistance wave	≤ 50mΩ
Working temperature	-40°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~100rpm

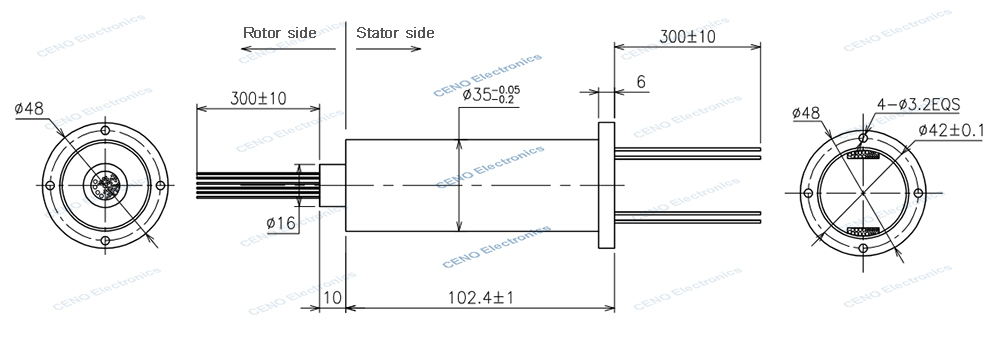

Outer diameter	Ø35mm
Contact material	Gold to gold
Housing material	Aluminum alloy
Lead wire size	As customized
Lead wire length	As customized
