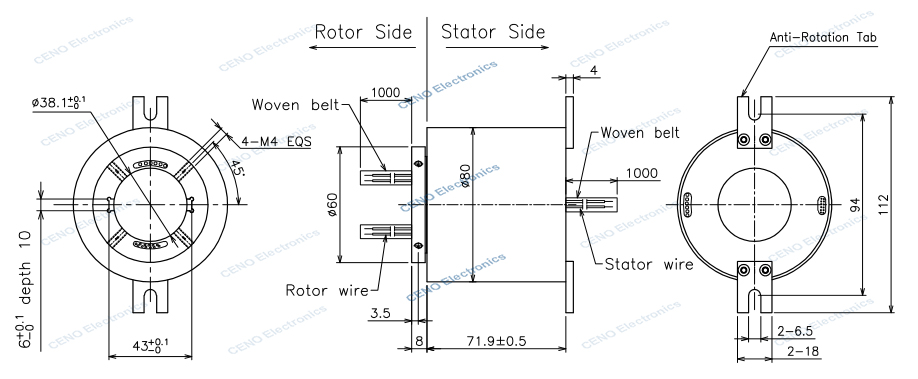

ECN038-02P4-02EM-IP54 Low Temperature Slip Ring

ECN038-02P4-02EM-IP54 is CENO low temperature slip ring with protection grade IP54 and through hole 38mm. Low-temperature slip rings are a special customized version of electrical slip rings.Their core function is to maintain stable electrical power/signal transmission under extreme low-temperature conditions. They are specifically designed to meet the rotating electrical conductivity requirements of cold environments or cryogenic equipment. Please contact us get more information.

Product Details

Specification

ECN038-02P4-02EM-IP54	Specification
Current & Circuits	2 * 20A; 2 * 100M Ethernet Signal
Rating Voltage	0 ~ 240 VAC/VDC
Dielectric strength	≥1000VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-60°C~+70°C
Working humidity	95±4 %RH
IP protection grade	IP54
Operating speed	0~300rpm
Inner diameter	Ø38mm
Outer diameter	Ø80mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire size & length	As customized
