ECN012-12S-GS-A High Speed Slip Ring

ECN012-12S-GS-A is CENO high speed slip ring with working speed 3000rpm. As name showing, high-speed slip rings are specifically designed for equipment where need high-speed operating. Feature of high speed slip ring is their design prioritizes stability, reliability, and long life at high speeds. Offered high speed capabilities, low vibration, low noise, and minimal contact resistance fluctuation. For more information about how CENO slip ring can fit your application please contact us.

Product Details

Specification

ECN012-12S-GS-ASpecification

Current & Circuits

12 circuits * 1A

Rating Voltage

0 ~ 380 VAC/VDC

Dielectric strength

≥1000VAC@50Hz

Isolation resistance

≥500MΩ@500VDC

Contact resistance wave

≤ 30mΩ

Working temperature

-20°C~+60°C

Working humidity

60 %RH

IP protection grade

IP51

Operating speed

0~3000rpm

Inner diameter

Ø12.5mm

Outer diameter

Ø65mm

Contact material

Precious metal

Housing material

Aluminium Alloy

Lead wire size & length

As customized

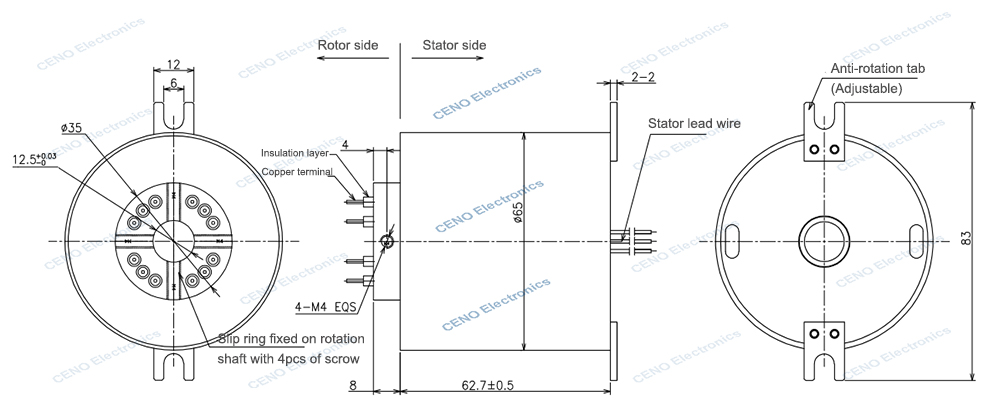

Outline drawing

ECN012-12S-GS-A drawing rev
