HCN000-02P3-02P1 is CENO Insert type slip ring with 4 pins. CENO HCN series slip rings feature a sophisticated design, using pins instead of wires for contact. They comply with RoHS regulations and are widely used in equipment such as wind turbines, assembly lines, rotating worktables, cable reels, and heating rollers. Adopt advanced fiber brush technology ensures low friction, low contact resistance, and zero friction debris. For more information please contact us.
Specification
| HCN000-02P3-02P1 | Specification |
|---|---|
Current & Circuits | 2 circuits * 15A; 2 circuits * 2A |
Rating Voltage | 0 ~ 240 VAC/VDC |
Dielectric strength | ≥500VAC@50Hz |
Isolation resistance | ≥100MΩ@500VDC |
Contact resistance wave | ≤ 10mΩ |
Working temperature | -20°C~+80°C |
Working humidity | 60 %RH |
Operating speed | 0~400rpm |
Contact material | Precious metal |
Housing material | Engineering plastics |

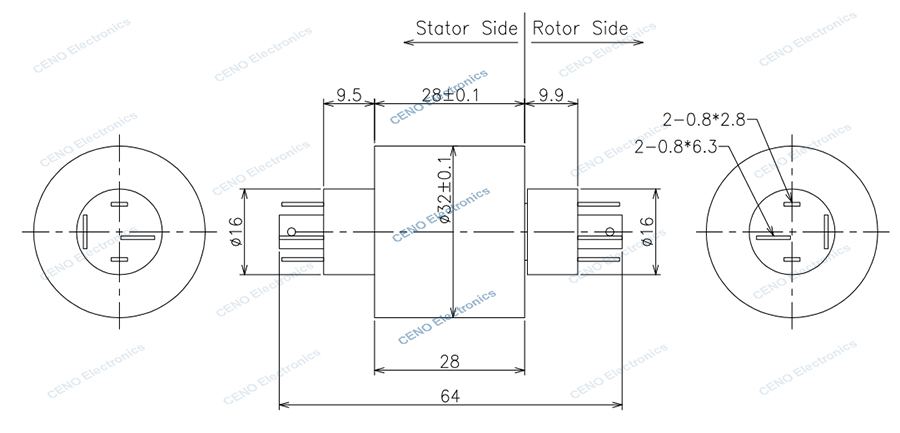

Outline drawing
