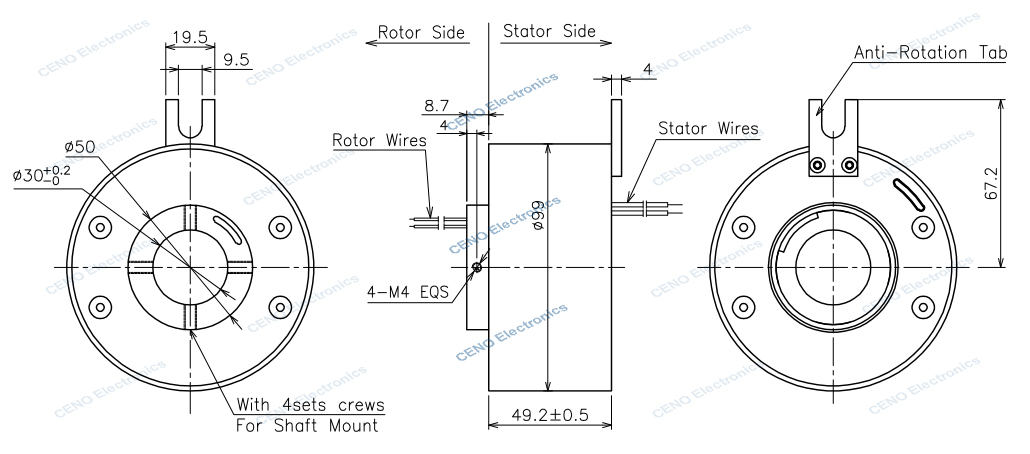

ECN030-04P4 Power Slip Ring

ECN030-04P4 is CENO power slip ring with through hole 30mm and can be optional to suit different equipment. Power slip ring a precision electro- mechanical component that enables continuous, tangle-free, and low-loss transmission of electrical energy and electrical signals between rotating and stationary parts. That is to solve problems such as wire breakage & signal distortion caused by twisting & entanglement of wires in rotating mechanisms, ensuring long-term and stable operation of the system.

Product Details

Specification

ECN030-04P4	Specification
Current & Circuits	4 circuits * 25A
Rating Voltage	0 ~ 220 VAC/VDC
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥50MΩ@500VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~80rpm
Inner diameter	Ø30mm
Outer diameter	Ø99mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire size & length	As customized
