PCN210-03P2-08S Pancake Slip Ring

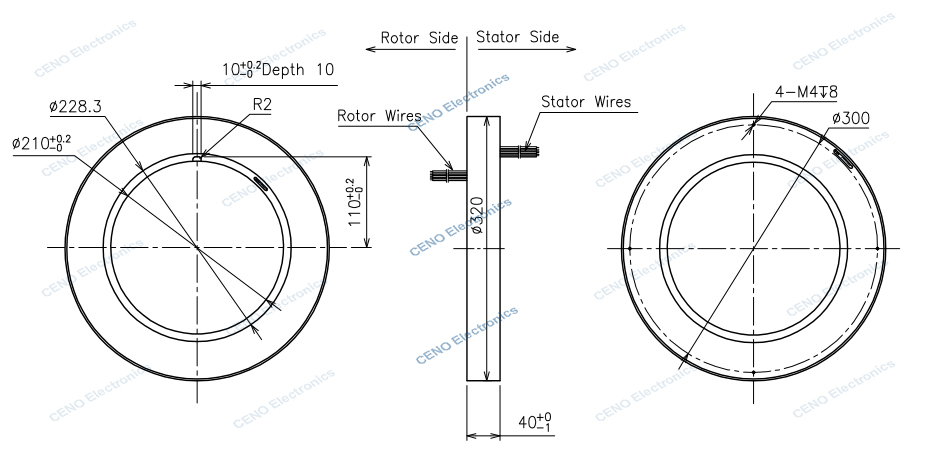

PCN210-03P2-08S is CENO pancake slip ring with through hole 210mmand 40mm thickness that is available for custom for different application. Pancake slip ring is as another form of though hole slip rings. CENO pancake slip rings are designed for some equipment which vertical space is limited while horizontal space is less restrictive.This type slip ring provides ultra-thin thickness for special limited installation space. For more information about how CENO pancake slip ring can fit your application please contact us.

Product Details

Specification

PCN210-03P2-08S	Specification
Current & Circuits	3 * 10A; 8 * 5A
Rating Voltage	0 ~ 220 VAC/VDC
Dielectric strength	≥500VAC@50Hz; ≥300VAC@50Hz;
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave	≤ 70mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~12rpm
Inner diameter	Ø210mm
Outer diameter	Ø320mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire size & length	As customized
