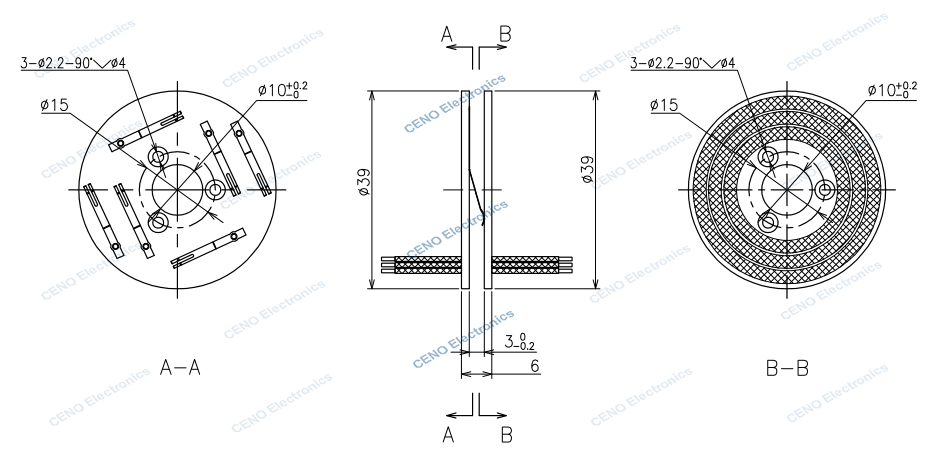

PSCN010-03P1 Low Temperature Pancake Slip Ring

PSCN010-03P1 is CENO low temperature pancake slip ring with electric power. Low temperature Pancake slip rings are specially designed and manufacture for ultra-low temperature working environments. Their contact materials and structures have been specially treated to ensure that they will not fail due to material embrittlement under extremely cold conditions. They are essential components in cutting-edge scientific research and high-end technological equipment. More information please contact us.

Product Details

Specification

PSCN010-03P1	Specification
Current & Circuits	3 circuits * 3A
Rating Voltage	0 ~ 9 VAC/VDC
Dielectric strength	≥300VAC@50Hz
Isolation resistance	≥100MΩ@100VDC
Contact resistance wave	≤ 30mΩ (50rpm)
Working temperature	-40°C~+85°C
Working humidity	60 %RH
IP protection grade	IP00
Operating speed	0~30rpm
Inner diameter	Ø10mm
Contact material	Gold to gold
Housing material	FR4
Rotation way	Flange installation
