ECN000-09P-22S-01EG-01F, one of CENO fiber optical joint, customized for photoelectric pod industry.The joint is integrated with 9 channels of currents,two circuits of 40A current, 1 channel single-mode fiber, 22 channels signals and a set of gigabit Ethernet signals.The structure is compact.Its out dimension is 62mm and body length is 119mm. This joint can be adaptable, working environment from - 40 ℃ to + 80 ℃ to meet the requirement of electro-optical pod system performance.
ECN000-09P-22S-01EG-01F | Specification |
Current | 3*2A,2*40A,2*10A,2*6A,22*signal, 1* Gigabit Ethernet |
Rating voltage | 380VAC |
Electrical noise | ≤70mΩ(50rpm) |
Dielectric strength | ≥500VAC@50Hz(Power) ≥300VAC@50Hz(Signal) |
Insulation resistance | 500MΩ@300VDC(Power) 100MΩ@300VDC(Signal) |
Working temperature | -40℃~+80℃ |
Protection grade | IP54 |
Working speed | 0~300rpm |
Contact material | Gold to Gold |
Fiber type | SM |
Fiber channel | 1 |
Insertion loss,max | ＜2.0dB |
Connector type | FC/FC |

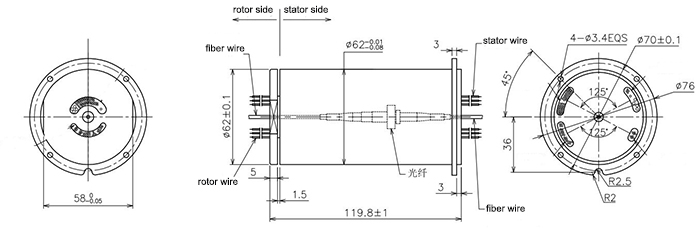

Outline drawing
