QCN0102-05P-01EG is one of CENO integrate pneumatic hydraulic rotary union which combine circuits electric power, signal and channels gas rotary union. CENO have provided kinds of integrate slip ring, which combine conventional electrical slip ring with encoders / resolver, fiber optic rotary joints, radio frequency and pneumatic hydraulic rotary union. CENO integrate slip ring popular used in not only modern industry automatic system but also used in vehicles. For more information please contact us.
Specification
| QCN0102-05P-01EG | Specification |
|---|---|
Current & Circuits | 5 circuits*3A; 1*1000M Ethernet |
Rating Voltage | 0 ~ 24VAC/VDC |
Dielectric strength | ≥500VAC@50Hz |
Isolation resistance | ≥100MΩ@100VDC |
Electrical noise | Max 30mΩ (50rpm) |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP54 |
Operating speed | 0~100rpm |
Outer diameter | Ø65mm |
Contact material | Precious Metal |
Housing material | Aluminum alloy |
Lead wire size | As customized |
Lead wire length | As customized |
Rotary Joint | |
The road | 1 channel gas ( G1/4” & Ø10mm tube ) |
Pressure max | 10 Bar |

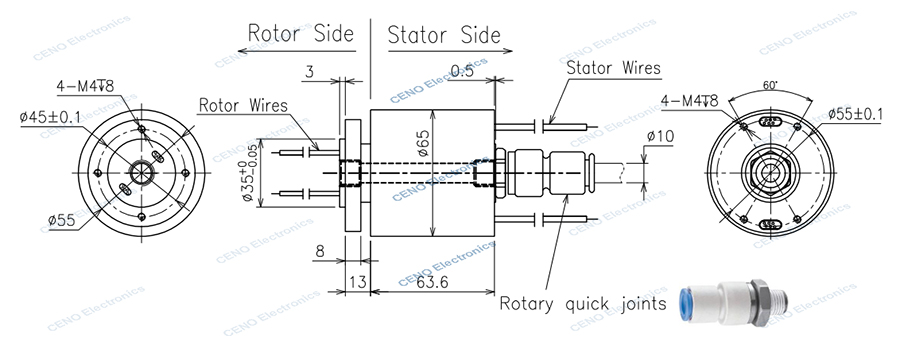

Outline drawing
