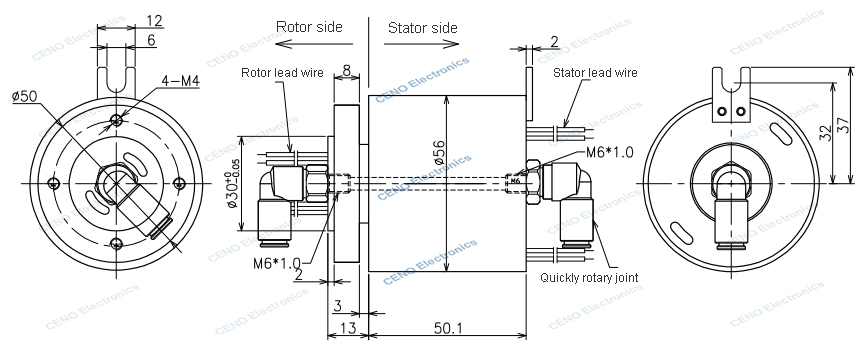

QCN01M6-06P-06S Integrate Pneumatic / Hydraulic Slip Ring

QCN01M6-06P-06S is CENO integrate slip ring which combine circuits electric power and 1 channel air with max pressure 1.0MPa. Integrated gas-liquid slip rings are precision electro mechanical components that integrate gas, liquid, and electrical power/signal within one rotating mechanism. Their core function is to simultaneously achieve tangle-free transfer of gaseous and liquid media and continuous transmission of electrical signals/power between the rotating and stationary parts.

Product Details

Specification

QCN01M6-06P-06S	Specification
Current & Circuits	4 * 3A; 2 * 0.5A; 4 * io signal; 1 * 485 signal
Rating Voltage	0 ~ 3000 VAC/VDC
Dielectric strength	≥300VAC@50Hz
Isolation resistance	≥100MΩ@100VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~300rpm
Outer diameter	Ø56mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire size & length	Stator: 300mm; Rotor: 300mm
Rotary Union
Channels	1 channel * Air ( M6 & Tube 6mm )
Pressure max	1.0MPa
