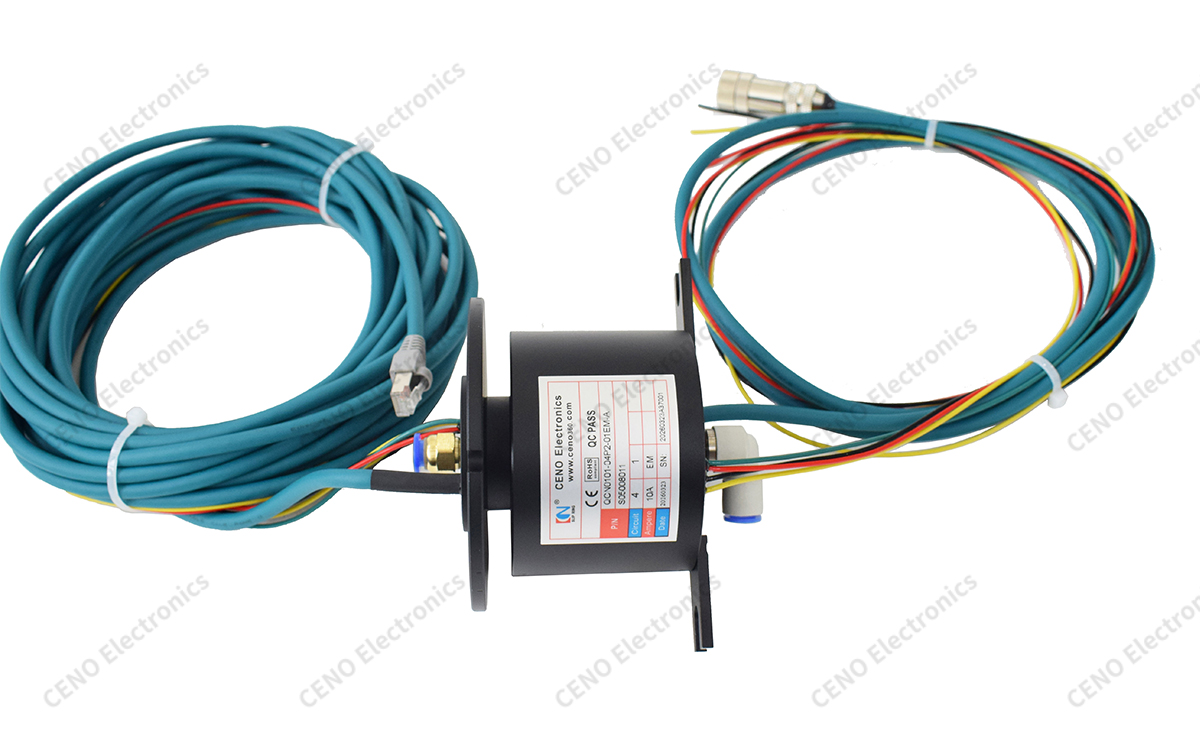

QCN0101-04P2-01EM-A is CENO Pneumatic-Electric Integrated Slip Ring unites pneumatic rotary joint, power conductive slip ring and Gigabit Ethernet channel inside one aluminum housing. It enables continuous 360° rotation while conveying compressed air, 4-circuit 10A power and industrial Ethernet signals without disconnection. It adopts flange installation, matched RJ45 port and aviation plug, with CE and RoHS industrial certifications.
Specification
| QCN0101-04P2-01EM-A | Specification |
|---|---|
| Protection Rating | IP51 |
| Operating Temperature | -20℃ ~ +60℃ |
| Operating Humidity | Below 60% RH |
| Rated Voltage | 0 ~ 220 VAC/VDC |
| Rated Current | 4 channels × 10 A; 1 group × 100 Mbps |
| Wire Specifications | AWG #17 tin-plated Teflon wire, CAT5e |
| Dielectric Strength | ≥500 VAC @ 50 Hz (power); ≥300 VAC @ 50 Hz (signal) |
| Insulation Resistance (Normal) | ≥500 MΩ @ 500 VDC (power); ≥100 MΩ @ 100 VDC (signal) |
| Resistance Fluctuation | 30 mΩ (at 50 rpm) |
| Wire Length | Rotor side: Ethernet cable 10,000 mm; others 1,500 mm Stator Side: All 1,500 mm |
| Contact Material | Precious metal |
| Operating Speed | 0 ~ 50 rpm |
| Mounting Method | Rotor end flange fixed, stator end flange fixed |
| Housing Material | Aluminum alloy, sandblasted and anodized |
| Channel | 1 channel × air passage |
| Connection Method | ø8 mm tubing @ G1/8" thread |
| Air Pressure | -100 kPa ~ 1.0 MPa |
