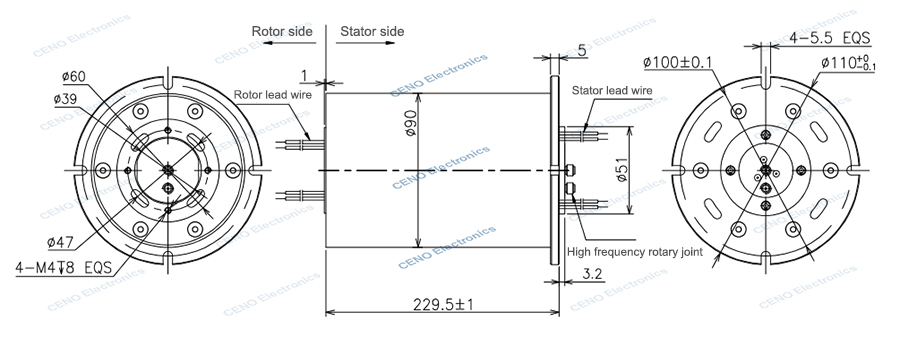

ECN000-10P-50S-02EM-02R Low Temperature Integrate RF Slip Ring

ECN000-10P-50S-02EM-02R is CENO integrate slip ring combine circuits electric power, Ethernet signal and 2 channels radio frequency. RF slip rings are specifically designed and categorized by transmission frequency into low-frequency RF slip rings and high-frequency/microwave slip rings. Low-frequency RF slip rings are relatively simple to manufacture and are relatively inexpensive. High-frequency/microwave slip rings are difficult to design and manufacture, requiring extremely high standards for materials and structure, and are therefore expensive. For more information please contact us

Product Details

Specification

ECN000-10P-50S-02EM-02R	Specification
Current & Circuits	4 * 20A; 6 * 5A; 50 * Signal; 2 * Ethernet signal
Rating Voltage	0 ~ 220 VAC/VDC
Dielectric strength	≥500VAC@50Hz; ≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC; ≥100MΩ@300VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-40°C~+60°C
Working humidity	60%RH
IP protection grade	IP51
Operating speed	0~100rpm
Outer diameter	Ø90mm
Contact material	Precious metal
Housing material	Aluminium Alloy
Lead wire length	Rotor: 300mm; Stator side:1300mm
Rotation way	Flange installation
Radio frequency	Parameters
RF	Channel1	Channel 2
Connector type	SMA-f (50Ω)	SMA-f (50Ω)
Style	Style I	Style I
Frequency range	DC to 8GHz	DC to 8GHz
WSR (max)	1.4	1.5
WSR floating (max)	0.15	0.2
Insert loss	0.7dB	1.1dB
Insert loss (max)	0.1dB	0.1dB
Average power	10W@1Ghz	10W@1Ghz
Isolation	70dB	70dB
