ECN000-08P-13S-03R-IP65 is CENO Low Temperature Integrate RF Slip Ring combined circuits electric power and 3 channels radio frequency rotary joint. CENO integrate slip ring can be highly integrated with various transmission modules to form a multi-functional rotary connection solution, specifically designed for synchronous rotary transmission of electrical power, optical signals, data signals, and fluids/gases in complex systems. Support various customization for your special application.
Specification
| ECN000-08P-13S-03R-IP65 | Specification | ||
|---|---|---|---|
Current & Circuits | 4* 10A;2*3A; 2*1A; 11*10 Signal; 1*485Signal | ||
Rating Voltage | 0 ~ 220 VAC/VDC | ||
Dielectric strength | ≥500VAC@50Hz; ≥300VAC@50Hz | ||
Isolation resistance | ≥500MΩ@500VDC; ≥100MΩ@300VDC | ||
Contact resistance wave | ≤30mΩ | ||
Working temperature | -40°C~+60°C; -45°C~+70°C | ||
Working humidity | 60 %RH | ||
IP protection grade | IP65 | ||
Operating speed | 0~30rpm | ||
Outer diameter | Ø150mm | ||
Materials | Precious Metal / Aluminium Alloy | ||
Installation | Flange installation | ||
Radio Frequency Rotary Joint | |||
Channels | Channel 1 | Channel 2 | Channel 3 |
Connector type | N-F(50Ω) | N-F(50Ω) | N-F(50Ω) |
Frequency range | DC to 2GHz | DC to 800Hz | DC to 800Hz |
Average power(max) | 20W | 20W | 20W |
WSR(max) | 1.3 | 1.3 | 1.3 |
WSRC(max) | 0.1 | 0.1 | 0.1 |
Insert loss(max) | 0.4dB | 0.4dB | 0.4dB |
Insertion change(max) | 0.15dB | 0.15dB | 0.15dB |
Isolation | 70dB | 70dB | 70dB |

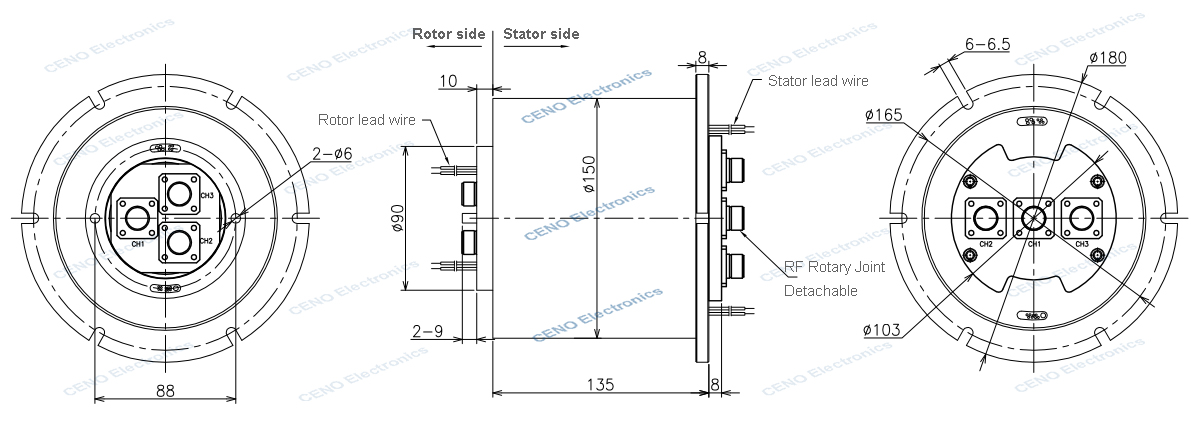

Outline drawing
