ACN-56A-0218-08S-2E2

Ethernet slip ring specially designed for high frequency to transmit 100M/1000M Ethernet signals, with advantages of reliable transmitting, no packet loss, no string code, low return loss, low insertion loss.

Product Details

ACN-56A-0218-08S-2E2	Specification
Current	218A ; 8signal; 2*100M Ethernet signal
Rating voltage	240VAC
Insulation resistance	100MΩ@500VDC
Dielectric strength	≥500VAC@50Hz
Electric noise	≦35mΩ(with 50rpm running)
Lead wire size	AWG12#/28# ;CAT5E
Lead wire length	805mm
Working temperature	-45℃~+75℃
Protection grade	IP54
Working speed	0~300rpm
Contact material	Precious metal
Housing material	Engineering plastic

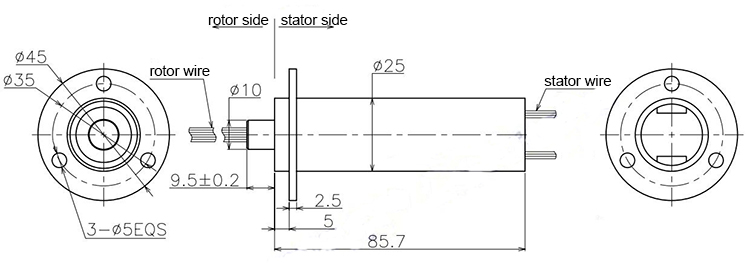

Outline drawing
