ECN038-32S-03HD

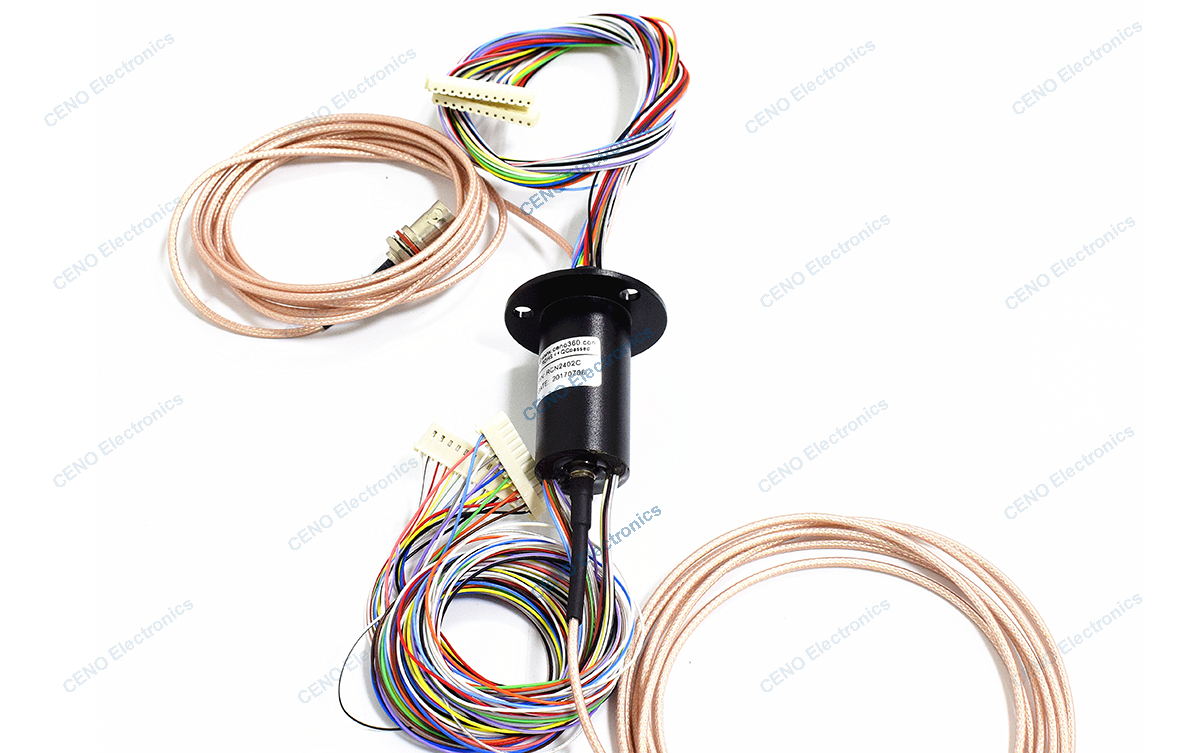

This is high definition slip ring for rotary table, through bore size 38mm, total 35 lead wires, multi-channels combining power and various signal, it has special 3 channels for bandwidth signal, housing material is aluminium alloy, working speed 250rpm max, smooth rotation. gold- gold contact point to guarantee extending working lifespan.

Product Details

ECN038-32S-03HD	Specification
Current	321A, 3Bandwidth
Voltage	0~150 VAC/VDC
Electrical noise	≤10mΩ(50rpm)
Dielectric strength	≥1000V@50Hz
Insulation resistance	500MΩ@500VDC
Operating speed	0-250 rpm
Contact material	gold to gold
Operating temperature	-30~+40℃
Through bore size	38mm
IP protection grade	IP44

Outline drawing
