ECN025-0540-07P2-IP55 is CENO one through bore slip ring with electric power for industrial system. There are many series slip rings on CENO product line, through bore slip ring designs are available for harsh conditions often that are configured for electrical power, signal or both, and these designs can be integrated with other products, such as forjs, radio frequency union or fluid rotary joint. parameters of these can be customized for different application requirements. For more information please contact us.
Specification
| ECN025-0540-07P2-IP55 | Specification |
|---|---|
Current & Circuits | 5 circuits * 40A；7 circuits * 10A |
Rating Voltage | 0 ~ 380 VAC/VDC |
Dielectric strength | ≥1000VAC@50Hz |
Isolation resistance | ≥500MΩ@500VDC |
Electrical noise | Max 70mΩ (50rpm) |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP55 |
Operating speed | 0~300rpm |
Outer diameter | Ø99mm |
Contact material | Precious Metal |
Housing material | Aluminum alloy |
Lead wire size | As customized |
Lead wire length | As customized |
Installation | Rotor side fixed on main shaft with screws |

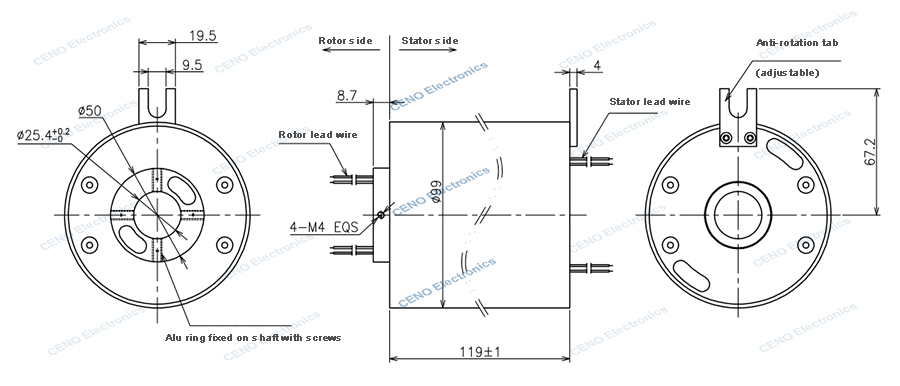

Outline drawing
