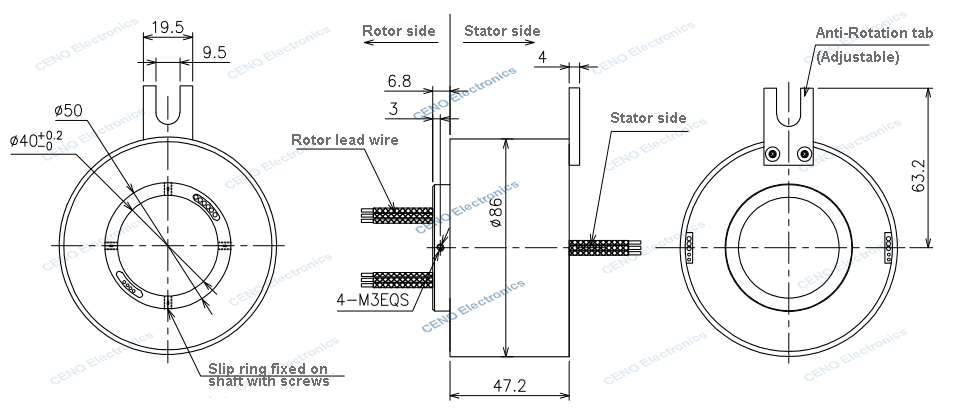

ECN040-06P2-04S Industry Slip Ring

ECN040-06P2-04S is CENO industry slip ring combine circuits electric power and signal for industry system. The main function of industrial slip rings is to provide continuous and stable power and signal transmission for rotating bodies. The slip ring ensures unobstructed transmission of power and data signals during equipment rotation by connecting the rotating and stationary parts. For more information about how CENO industry slip ring can fit your application please contact us.

Product Details

Specification

ECN040-06P2-04S	Specification
Current & Circuits	6 circuits * 10A; 2 * Signal
Rating Voltage	0 ~ 220 VAC/VDC
Dielectric strength	≥500VAC@50Hz;≥300VAC@50Hz
Isolation resistance	≥500MΩ@500VDC;≥100MΩ@100VDC
Contact resistance wave	≤ 70mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~150rpm
Inner diameter	Ø40mm
Outer diameter	Ø86mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire size	As customized
Lead wire length	As customized
