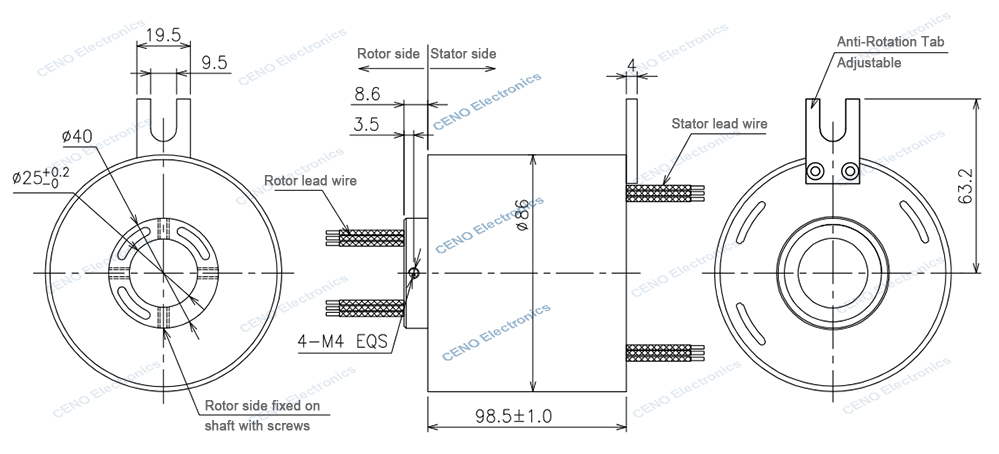

ECN025-12P4 Electric Power Slip Ring

ECN025-12P4 is CENO through hole slip ring with 12 circuits electric power for industry system & turntable. CENO specially designs precision conductive slip ring for various working turntable equipment to solve the 360°unlimited rotation transmission of various power currents, servo control signals, image video signals, encoded data signals etc, for customer different requirement. For more information about how CENO slip ring can fit your application, please contact us.

Product Details

Specification

ECN025-12P4	Specification
Current & Circuits	12 circuits * 20A
Rating Voltage	0 ~ 380VAC/VDC
Dielectric strength	≥500VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~300rpm
Inner diameter	Ø25mm
Outer diameter	Ø86mm
Contact material	Precious metal
Housing material	Aluminium Alloy
Lead wire length	As customized
