ECN050-02P-05S Through Hole Slip Ring

ECN050-02P-05S is CENO through hole slip ring combine circuits power, analog and CAN bus signal. The center through-hole can be used to pass other pipelines or components, greatly saving the external space of the equipment and making the overall structure more compact and neat. Through hole slip ring can solve multiple transmission needs, details as different application from customer. For more information about how CENO slip ring can fit your special application please contact us.

Product Details

Specification

ECN050-02P-05S	Specification
Current & Circuits	2 circuits * 5A; 3 circuits * Analog signal; 2 circuits * CANBus signals
Rating Voltage	0 ~ 220 VAC/VDC
Dielectric strength	≥500VAC@50Hz
Isolation resistance	≥100MΩ@100VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP54
Operating speed	0~100rpm
Contact material	Precious metal
Housing material	Aluminum alloy

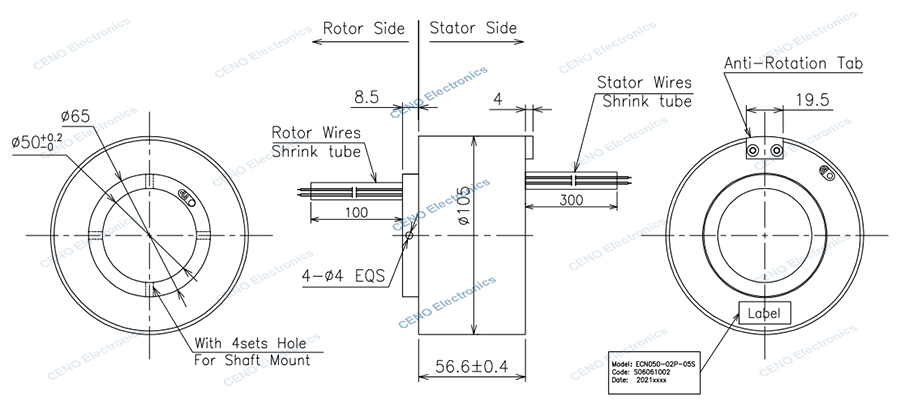

Inner / Outer diameter	50mm / 105mm
Lead wire size	As customized
Lead wire length	As customized
Rotation way	Fix up stator side with anti-rotation tab
