ECN000-24P1 Industry Slip Ring

ECN000-24P1is CENO industrial slip ring combine with 24 circuits electric power and signals. CENO industry commonly used in high-end industrial electrical equipment or precision electronic equipment with multiple functions, high performance, high precision, and multiple continuous rotational movements. CENO industrial slip ring provide reliably transmission solution of power and signal for electrical equipment which perform complex rotational movement. For more information please contact us.

Product Details

Specification

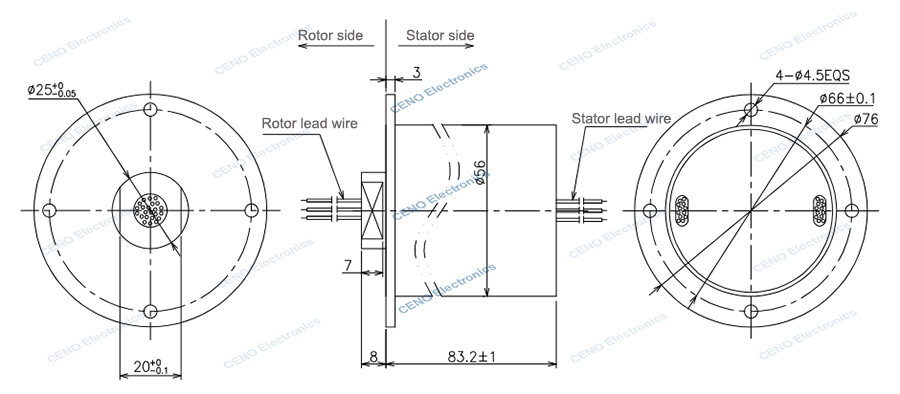

ECN000-24P1	Specification
Current & Circuits	12 circuits * 5A; 12 circuits * 2A
Rating Voltage	0 ~ 220 VAC/VDC
Dielectric strength	≥500VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance wave	≤ 30mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~300rpm
Outer diameter	Ø56mm
Contact material	Precious Metal
Housing material	Aluminium Alloy
Lead wire size	As customized
Lead wire length	As customized
