ECN038-04P2-GS Long Service Life Slip Ring

ECN038-04P2-GS is CENO long service life slip ring with working life around 40x10⁷ rotation. Through hole design and transmit electric power within same direction. Long service life slip rings with through bore structure are currently the most cost-effective and best selling series of industrial slip ring. Popular used in situations where 360-degree continuous rotation requires guaranteed power and uninterrupted signals. For more information please contact us

Product Details

Specification

ECN038-04P2-GS	Specification
Current & Circuits	4 circuits * 10A
Rating Voltage	0 ~ 380 VAC/VDC
Dielectric strength	≥1000VAC@50Hz
Isolation resistance	≥500MΩ@500VDC
Contact resistance wave	≤ 70mΩ
Working temperature	-20°C~+60°C
Working humidity	60 %RH
IP protection grade	IP51
Operating speed	0~150rpm

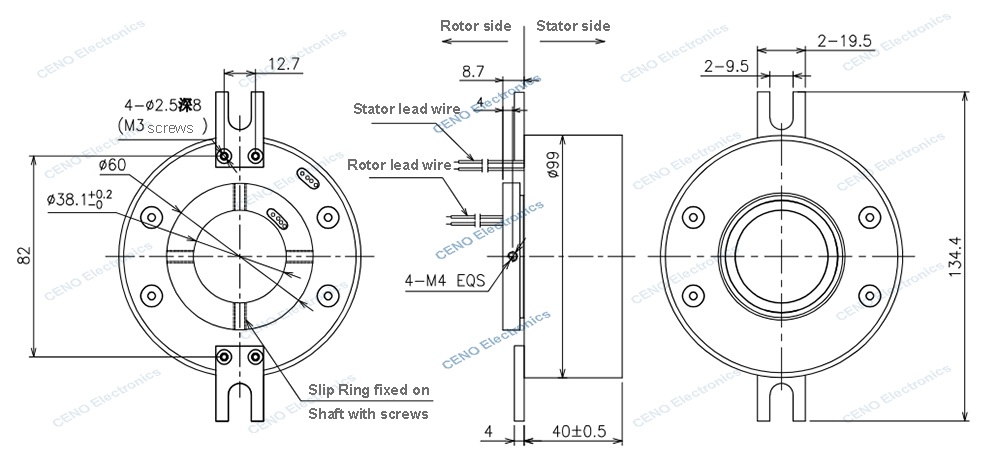

Inner diameter	Ø38.1mm
Outer diameter	Ø99mm
Contact material	Gold to gold
Housing material	Aluminium Alloy
Lead wire size	As customized
Lead wire length	As customized
