ECN000-0350-IP54 is CENO industry slip ring with 3 circuits electric power and 50A for automatic machine. An industrial slip ring is a device that enable 360-degree unrestricted rotation in various industrial application. It is primarily used to transmit power, data signals or other media between rotating equipment and fixed structures. such as turntables, wind turbines and medical imaging equipment.For more information about how CENO slip ring can fit your application please contact us.
Specification
| ECN000-0350-IP54 | Specification |
|---|---|
Current & Circuits | 3 circuits * 50A |
Rating Voltage | 0 ~ 600 VAC/VDC |
Dielectric strength | ≥1500VAC@50Hz |
Isolation resistance | ≥500MΩ@500VDC |
Contact resistance wave | ≤ 30mΩ |
Working temperature | -20°C~+60°C |
Working humidity | 60%RH |
IP protection grade | IP54 |
Operating speed | 0~100rpm |
Outer diameter | Ø80mm |
Contact material | Precious metal |
Housing material | Aluminium Alloy |
Lead wire size & length | As customized |
| Rotation way | Stator side: Flange installation |
Rotary torque | ≤1.0N*m |

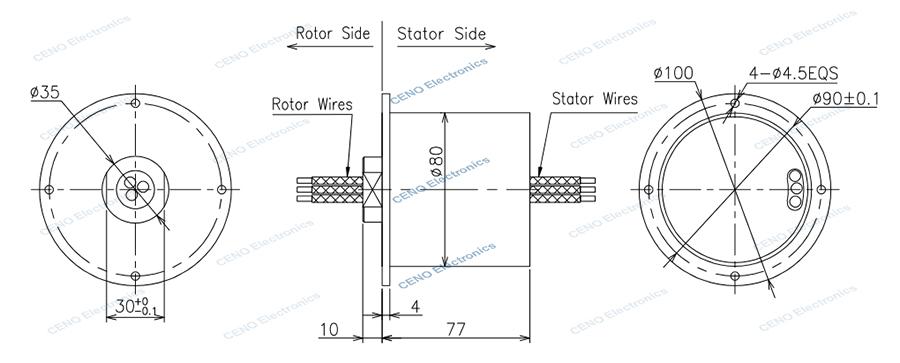

Outline drawing
