PSCN042-02P4-02S Pancake Slip Ring

PSCN042-02P4-02S is CENO Electric power pancake slip ring with inner bore 42mm and option. Compare with cylindrical slip ring, prominent advantage of pancake slip ring is that have ultra-thin compact structure to save axial space, and high stability and vibration resistance to offering better resistance to axial vibration and shock, minimizing contact resistance fluctuations, and ensuring more stable power and signal trans -mission. For more information about how CENO slip ring can fit your application please contact us.

Product Details

Specification

PSCN042-02P4-02SSpecification

Current & Circuits

2 circuits * 20A; 2 circuits * Can signal

Rating Voltage

0 ~ 100 VAC/VDC

Dielectric strength

≥300VAC@50Hz

Isolation resistance

≥100MΩ@100VDC

Contact resistance wave

≤ 30mΩ

Working temperature

-20°C~+60°C

Working humidity

60 %RH

IP protection grade

IP00

Operating speed

0~80rpm

Inner diameter

Ø42mm

Contact material

Gold to gold

Housing material

FR4

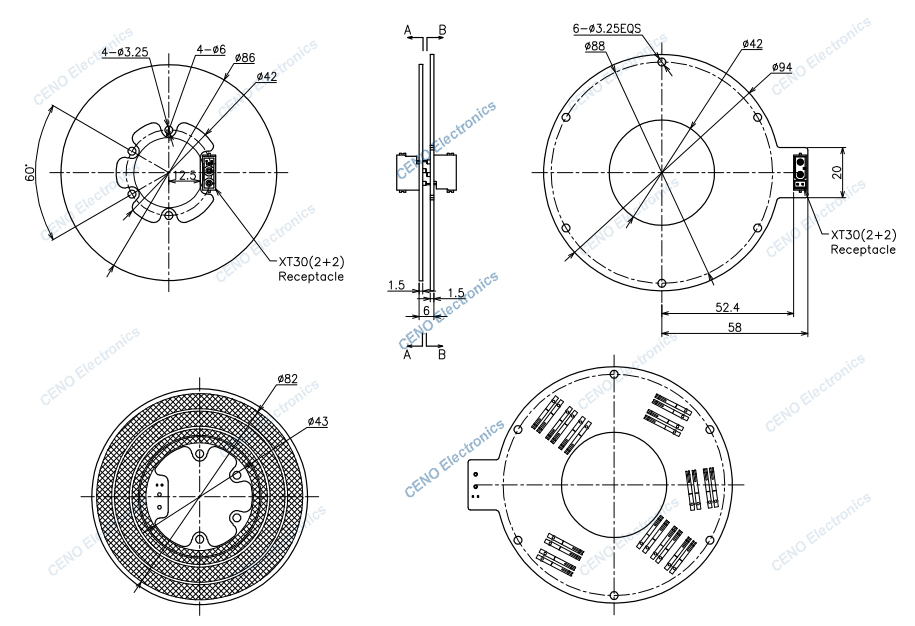

Outline drawing

PSCN042-02P4-02S drawing rev
