QCN0201-06P3-04P1-01EM is CENO's another new design Integrated slip ring for the industrial system recently. Which is combined 6circuits for Power, 4circuits for data, 1group for Ethernet signal and 2 channels for air. We have more than 5000 designs in past twenty years, and they are widely apply to many kinds industrial system. Based on it’s stable performance, long service life and different sealing forms, the power + pneumatic / hydraulic slip ring is often individually designed or customized for CENO customers. For more specific information please contact us.
Specification
| QCN0201-06P3-04P1-01EM | Specification |
|---|---|
Current & Circuits | 6 circuit*15A; 4circuit*2A; 1Group*100M Ethernet |
Rating Voltage | 0~480VAC/VDC |
Dielectric strength | ≥1000VAC@50Hz ≥300VAC@50Hz |
Isolation resistance | ≥500MΩ@500VDC ≥100MΩ@100VDC |
Contact resistance | 30mΩ (50rpm) |
Contact material | Precious metal / Gold to Gold |
Housing material | Stainless steel + Aluminum Alloy |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP50 |
Operating speed | 0~50rpm |
Lead wire size | AW14# Wire Teflon® UL AW24# Wire Teflon® UL CAT5e + RJ45 (male) |
Lead wire length | Rotor : 2000mm Stator : 2000mm |
External diameter | Ø86mm |
Rotation way | Flange installation |
The road | 2 channels air |
Pressure | ≤ 8 Bar |
Connection diameter | G 1/8” |
Pip diameter | Ø10mm |
Torque | 5N*m |

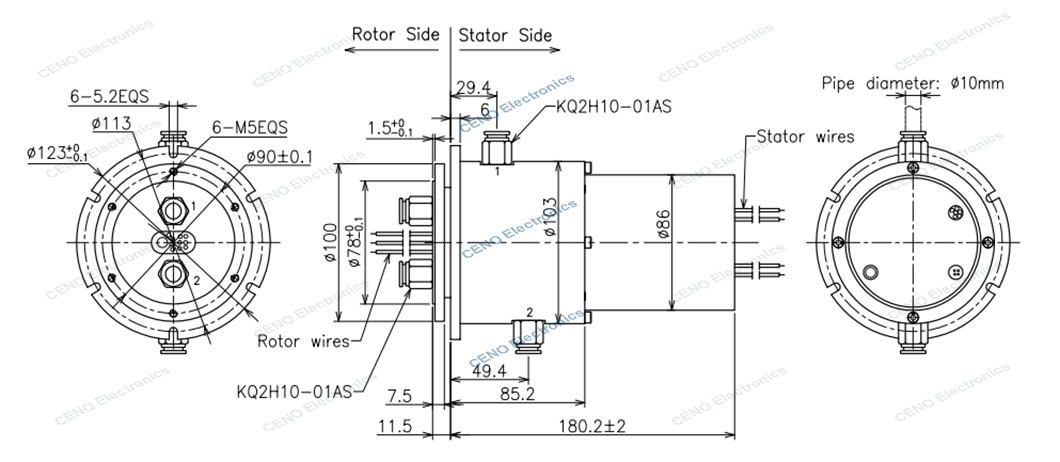

Outline drawing
