ECN000-34P-IP65 is a Marine Slip Ring with 34 circuits of electrical power, and often designed for the floating system, Winch or Oilfield down hole system. CENO Marine slip ring designs are available for harsh oilfield conditions that are configured for electrical power, data, signals or all of them. CENO has delivered trusted technology products and services to the offshore petroleum and oceanographic or maritime industries for about 20 years. For more information please contact CENO experts team.
Specification
ECN000-34P-IP65 | Specification |
|---|---|
Current & Circuits | 15Circuits* 20A; 5Circuits* 15A; 3Circuits* 5A; 11Circuits*2A |
Rating Voltage | 0-400VAC/VDC |
Dielectric strength | ≥1500VAC@50Hz; ≥500VAC@50Hz |
Isolation resistance | ≥500MΩ@250VDC; ≥100MΩ@250VDC |
Contact resistance | 30mΩ (50rpm) |
Working temperature | -20°C~+60°C |
Working humidity | 60 %RH |
IP protection grade | IP65 |
Operating speed | 0~300rpm |
External diameter | Ø86mm |
Lead wire size | Rotor: 8.5m; Stator: 2.5m |
Contact Material | Precious Metal |
Housing Material | Aluminum Alloy |

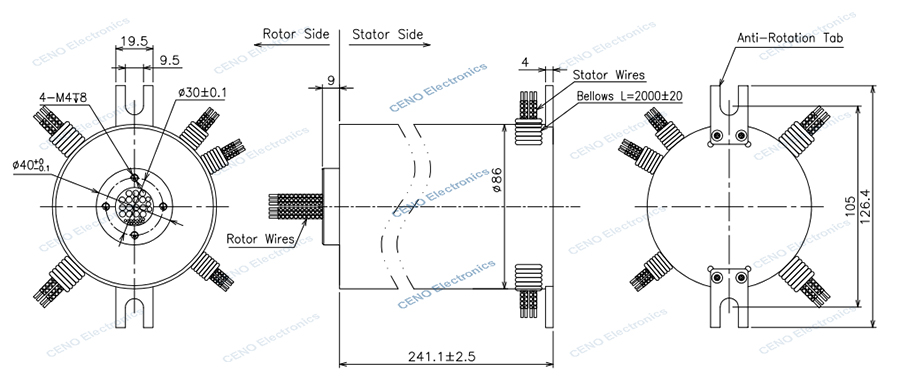

Outline drawing
